Dakota - Model CX -Ultrasonic Material Thickness Gauges

Intelligent

User definable limits for pass/fail indication
Users are able to set upper and lower limits with audible and visual pass/fail warnings. Limits can be set for individual readings or for each batch.

Accurate

A range of calibration options for accuracy and efficiency
The Dakota CX thickness gauges have a range of calibration options including the 1-Point calibration method. Users can also select one of 39 pre-set materials stored within the gauge or store up to three calibrations into the memory.

Versatile

Measures uncoated & coated surfaces
Flexible & easy to use, the Dakota corrosion gauge range doesn’t just measure uncoated surfaces but can also measure coated surfaces. Using Echo Echo ThruPaint™ Mode (EE), coatings up to 2mm (80mils) are ignored.

Dakota CX Thickness Gauges

• Auto recognition, ensures correct probe is identified when transducer is changed
• Scan Mode at 16Hz, ideal for measuring a large surface area
• User selectable reading resolution; 0.1mm (0.01”) or 0.01mm (0.001”)
• Pulse Echo (PE), Echo Echo ThruPaint™ & Velocity (VM) measurement modes
• Hi & Lo limit indicators provides indication of problem areas
• Integrated zero disc, ensures maximum accuracy
• Stores up to 100,000 readings in up to 1,000 sequential batches
• Selectable reading rate of 4, 8, 16Hz (4, 8, 16 readings per second)
• Transducer Options

A wide range of Corrosion Thickness Transducers available.

Wireless Connectivity
Connect to PC

Compatible with  DakMaster™ PC, readings can be downloaded via USB for further analysis and reporting.

Customisable

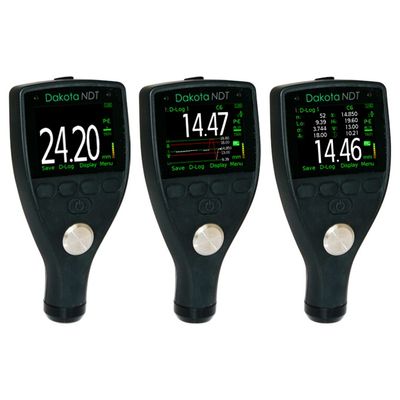

Choose & customise the reading display

The Dakota CX Thickness Gauge range has a choice of display modes allowing the user to select the most appropriate for their needs; Readings, Selected Statistics, Bar Graph, Run Chart, B-Scan & Differential Mode.
