NIVUS - Model P-Series -NMS -Ultrasonic Sensors for Level Measurement

• Very low in maintenance through non-contact measurement
• Extremely versatile thanks to measurement ranges from 0.07 m to 40 m
• Protection IP 68
• ATEX approval for Ex-Zone 0 and 1
• Alarm output in case of flooding possible
• Resistant to moisture, aggressive environments and heavy temperature fluctuations

The ultrasonic sensors with integrated temperature compensation for connection to NivuMaster- Series evaluation units provide a wide variety of measuring options for liquids.

The sensors provide accurate and reliable readings even in narrow tanks, no matter what measurement range or application. False echoes reflected from built-in obstructive constructions are negligible since they will be avoided automatically.
The sensors are available with 1"-thread or as flange version according to DIN and thus can be installed without any problems.

• Level measurements in the water and wastewater sector
• Flow measurements in open flumes and weirs
• Volume measurements in tanks
• Comparative measurements on screens
• Pump control in pump stations

Common

• Enclosure material:: Valox 357 PBT PVDF (optional)
• Process connection: 1"BSP/NPT Standard
• Protection: IP68 (5 Bar)
• Ex-Approval: II 2GD Ex m II T6 (II 1GD Ex ia IIC T6 also available, only in connection with intrinsically safe transmitter)
• Cable lengths: 5, 10, 20, 30, 50 or 100 m; other lengths upon request
• Echo evaluation: Automatic and self-learning echo suppression

Optionen

• Flange type: Flanges DIN DN80 / DN100 / DN150 / DN200, ANSI 3" / 4" / 6" / 8"
• Enclosure material:: PVDF for aggressive Medias, max. 70 °C (for P-6, P-10 and P-15
• Coating of transmitter surface: Sensor face with soft foam coating for dusty bulk solids (only for P-6, P-10 and P-15)
• Flood protection head: With SUB flood protection head
• To generate echo loss and alarm output in case of flooding
• No soiling of sensor face output in case of flooding and hence no cleaning of the sensor face required (not for P 25 and P40)

P-M3

• Measurement range: 0,07 m - 2,4 m
• Transmit frequency: 125 kHz
• Operating temperature: -30 to +95 C° (Ex-Zone -30°C do 75°C)
• Beam Angle: <10°
• Resolution: 0,5
• Measurement uncertainty: 1 mm

P-3

• Measurement range: 0,125 m - 3 m
• Transmit frequency: 125 kHz
• Operating temperature: -30 to +95 C° (Ex-Zone -30°C do 75°C)
• Beam Angle: <10°
• Resolution: 2 mm
• Measurement uncertainty: +/- 0,25 % of the current measurement range

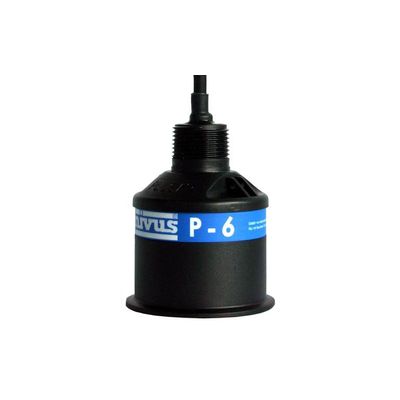

P-6

• Measurement range: 0,3 m - 6 m
• Transmit frequency: 75 kHz
• Operating temperature: -40 °C to +90 °C (Ex-Zone -40 °C to +75 °C)
• Beam Angle: <10°
• Resolution: 2 mm
• Measurement uncertainty: +/- 0,25 % of the current measurement range

P-S6

• Measurement range: 0,2 m - 6 m
• Transmit frequency: 50 kHz
• Operating temperature: -40 °C to +90 °C (Ex-Zone -40 °C to +75 °C)
• Beam angle: < 10°
• Measurement uncertainty: +/- 0,25 % of the current measurement range
• Resolution: 2 mm

P-10

• Measurement range: 0,3 m - 10 m
• Transmit frequency: 50 kHz
• Operating temperature: -40 °C to +90 °C (Ex-Zone -40 °C to +75 °C)
• Beam Angle: <10°
• Resolution: 2mm
• Measurement uncertainty: +/- 0,25 % of the current measurement range

P-15

• Measurement range: 0,5 m -15 m
• Transmit frequency: 50 kHz
• Operating temperature: -40 °C to +90 °C (Ex-Zone -40 °C to +75 °C)
• Beam Angle: <10°
• Resolution: 2mm 50 kHz
• Measurement uncertainty: +/- 0,25 % of the current measurement range

P-25

• Measurement range: 0,6 m - 25 m
• Transmit frequency: 30 kHz
• Operating temperature: -40 °C to +90 °C (Ex-Zone -40 °C to +75 °C)
• Beam Angle: <10°
• Measurement uncertainty: +/- 0,25 % of the current measurement range
• Resolution: 2 mm

P-40

• Measurement range: 1,2 m - 40 m
• Transmit frequency: 20 kHz
• Operating temperature: -40 °C to +90 °C (Ex-Zone -40 °C to +75 °C)
• Beam Angle: <7°
• Measurement uncertainty: +/- 0,25 % of the current measurement range
• Resolution: 2 mm
