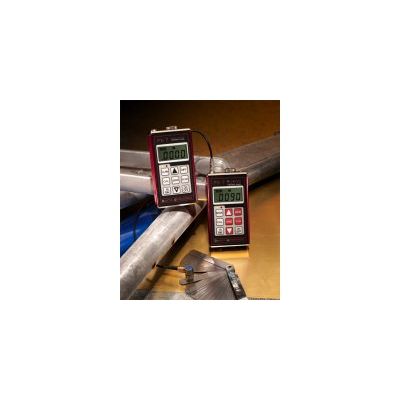

Dakota - Model PX-7 DL -Ultrasonics Precision Gauges for Non-Destructive Monitoring

SHARE

DAKOTA ULTRASONICS PX Series has arrived. The variety of features offered in the PX-7 and PX-7DL allow the user to select a quality tool that will meet or exceed their specific application needs. In the Echo-to-Echo Mode you have the ability to measure the thickness of materials without removing the paint or the coating. Our 5 year limited warranty indicates how we feel about the reliability and durability of the PX SERIES.The PX-7DL has all the features of the PX-7 plus  a data logger that stores a total of 1000 readings in 10 files of 100 readings each file.  Our DakView java-based PC or MAC OSX software makes this a complete kit.

Most popular related searches
data acquisition software
non-destructive monitoring
data logger
sealing membrane
thickness monitoring
traceable calibration
sound monitoring
interface monitoring
calibration standard

Physical

  • Weight: 10 ounces (with batteries).
  • Size: 2.5 W x 4.5 H x 1.24 D inches(63.5 W x 114.3 H x 31.5 D mm).
  • Operating Temperature: -20° to 120°F (-30° to 50°C).
  • Case: Extruded aluminum body with nickel-plated aluminum end caps. Sealed connectors and end caps.

Keypad

  • Sealed membrane that is resistant to both water and petroleum products.
  • 9 tactile-feedback keys.

Transducer

  • Single element with delay tip. 10 to 22 MHz frequency range.
  • Locking quick disconnect LEMO connector.
  • 4 foot cable.
  • Custom transducers available for special applications.

Warranty

  • 5 years limited

Power Source

  • Two 1.5V alkaline or 1.2V NiCad AA cells.
  • Typically operates for 150 hours with alkaline and 100 hours with NiCad.
  • Display flashes when battery is low. Unit turns off automatically when battery is too low to operate reliably.

Display

  • Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for use in poor light conditions.
  • Backlight is selectable:on / off / auto (illuminates only when taking a measurement).
  • Measurements displayed in inches, inches/microsecond, millimeters, and meters/second.
  • Bar graph indicates stability of reading.

Certification

  • Factory calibration traceable to national standards.
  • Internal Data Logger
  • Automatic Data Logging System 1000 reading capacity, (10 files of 100 readings each file). OBST indicates no reading.
  • Complete with data acquisition software and cable.

Measuring

  • Range:Measures from 0.0060 to 1.0000 inch (0.15 to 25.40 millimeters).
  • Switch to select English or Metric units.
  • Resolution:0.0001 inch (0.001 millimeter)
  • Velocity Range:0.0492 to .3937 in./µs. (1250 to 10,000 meters/second).

Measuring Modes

  • Interface to Echo, Echo-to-Echo (through paint) and Auto-Switchable.
  • Four readings per second for single point measurements or 8 per second in Scan Mode-captures the minimum thickness.
  • Single point calibration.

Features

  • Differential Mode:Enter acceptable thickness value, unit will display +/- the difference from the value entered.
  • Alarm Mode:Enter a minimum & maximum acceptable thickness value. If measurement falls outside Hi/Lo limits, red LED will illuminate and sound beeper. If measurement is between Hi/Lo limits, green LED will illuminate.
  • Data Output: RS-232 output sends data to a serial printer, a computer or other external storage device.
