UMP TECHNIKA - Model APS-4 -Automated Heat & Shrink Wrap Packing Machine
Briquetting is a great cost-saving measure for companies. Further improvement of the efficiency and quality of packing pays off. APS-4 is fit for a wide range of shrink wrapping with single or multi-row products. Automated alignment and placement feature improves the production efficiency and allows for the product to operate 24/7. When paired with UMPT briquette presses & our transportation table, this machine can support up to 4 BPA600A presses and produce up to 5 bags of briquettes per minute. After packaged in high-quality polyethene film the products have a compact and neat appearance which ensures the items’ integrity, the convenience of transportation and resistance to humidity.

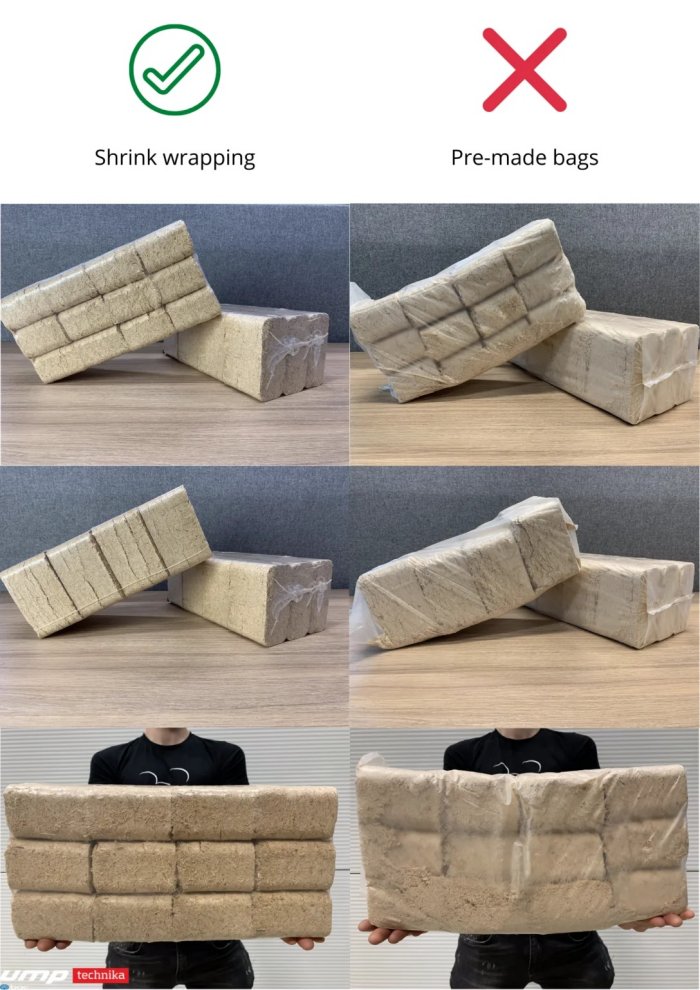

In contrast, currently widely used pre-made briquette bags have the disadvantage of unnecessary movement of briquettes inside the package which in turn disintegrate during logistics and lose value in the eyes of the end-consumer. Using shrink wrapping tightens the pack making it easier and safer to handle, increases resistance to humidity and even allows briquettes to be stored out in the elements. Stick-on carry handles are optional to provide the ultimate briquette pack.
- Automated quality control and recycling of rejected briquettes
- Automated de-dusting
- Automated alignment and packing
- Automated leaflet insertion
- Automated sealing and heat shrinking of packages
- Automated palletizing and pallet wrapping
The system ensures proper briquette dedusting, weighting (optional), alignment, packing and shrinking of the package. Automated sealers ensure a proper seal on each package eliminating the human factor while automated palletizing attachments load and wrap the pallets.
- Sealing type: Sleeve
- Packing capacity:
- Shrinking Tunnel speed: Variable, ≤15 m/min
- Working height: 780-850mm
- Shrinking Tunnel size: Depends on the size of the product
- Sealing knife width: 880mm
- Air pressure: ≤0.5MPa (5 bar)
- Power supply: 380V 50-60Hz
- Installed power: ≤30 kW
- Film type: Polyethene (PE)
- Max film size: 850mm (width) x 280mm (outer diameter)
