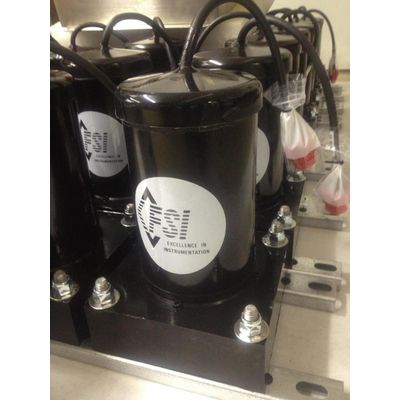

FSI - Model HMS-ATTR-4.5K -Underwater Transducer
The HMS-ATTR-4.5K is a very rugged, high power, underwater transducer specifically designed for marine sub-bottom profilers and echo-sounders in the 2 to 7 kHz frequency range. The transducer is designed for operation in a variety of array configurations to support shallow water surveys to deep water hull mounted arrays capable of operation in survey depths up to 10Km. Vessel installations will vary based on the survey requirements and vessel configuration so please contact Falmouth Scientific with your specific needs. Single transducers can support a 600W power level at a 30% duty cycle or 200W continuous while when configured as arrays the power levels for the array can be several Kilowatts though this will be cavitation limited depending on the installation.
Ultra-rugged, High-Power, Low-Frequency
The HMS-ATTR-4.5K transducer is a tonpilz piston source approximately 1/2 wavelength in diameter at the center of its operating frequency range and is designed with an industry standard mounting hole pattern through 4-corner integral mounts which allows support for both new and existing vessel array configurations. The transducers can be arranged in a multi-element array to support a wide variety of beam patterns and source level to suite most survey applications. Array configurations and preamp control module specification can be seen on next page
- Power Rating: 600 Watts 30% duty cycle, 200 Watts CW
- Transmitting Response per Volt: 152 dB re 1uPa/1V@1m
- Receiving Response per Volt: -165 dB re 1uPa/1V@1m
- Nominal Impedance: 250 ohms @ 3.5KHz
- Directivity: 80 0 conical at -3 dB
- Maximum Operating Depth: 1000m
- Weight (approximate): 25 lbs
