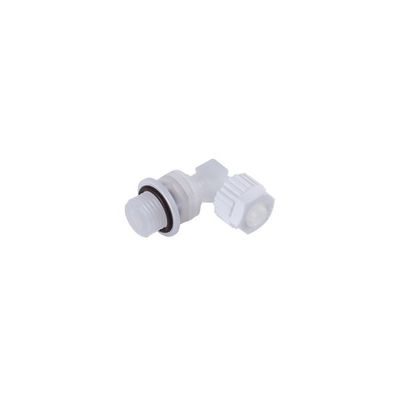

Tefen - Model 22566948041 -Union Elbow Swivel Connector
Product Code: 22566948041. Material: PVDF. MixRite Type: White. Working Pressure: Up to 14 bar (200 psi) at +20° C. O Ring Material: Viton.
Most popular related searches
Application
Hydraulic systems. To be used with all kind of very corrosive fluids like Acids, Weak bases, Halogens, Alcohols, Salts, Heavy duty oxidants, Detergents, etc. UV resistant, Nuclear resistant.
Comments
Advantages: for special aggressive chemical applications.

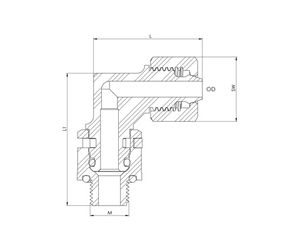

- Product Code: 22566948041
- SW: 16
- L1 mm: 27.3
- D mm: 8
- L mm: 33.2
- M1 BSPT: 1/4″
