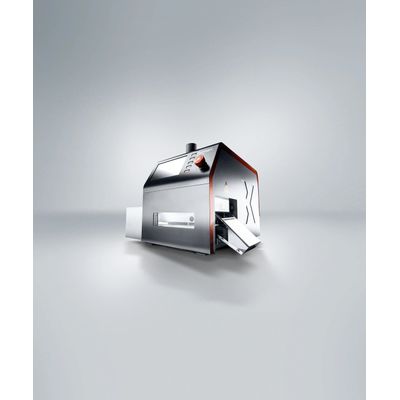

Komax Iota - Model 330 -Universal Cutting Machine

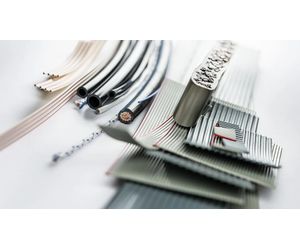

As a universal cutting machine, the Iota 330 Cut & Strip machine cuts endless products such as shrink-fit tubes, compressed-air tubes, wires and plastic straps with precision up to 1000m. The Iota 330 is careful, reliable and easy to use: The belt drive guides the product precisely to the cutting blade. Four-track parallel processing for high quantities is also possible. The closing distance and contact pressure can be set on the touchscreen. Product length, quantity and batch size are also defined here. After clamping the product in the belt drive, the desired end result can be checked again with the sample function. Thanks to the sophisticated cutting unit, the Iota 330 works with precise cuts for strands up to 35 mm². With its compact dimensions and weight of just 37.3kg, the cutting tool takes up little space and can be moved. This means that it works with precise quality and high efficiency.
Precise processing of large wire and conductor widths

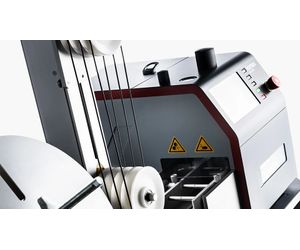

Prefeeder for wire optionally available
Optional four-track draw-in

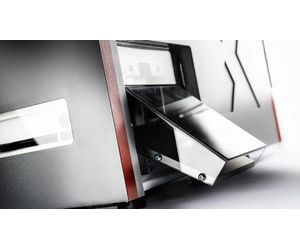

Optional sloping wire ejection channel for short products
Easy operation with 5 hard keys
Metric
- Wire length, processing on both sides min.: 1 mm
- Wire length max.: 1000000 mm
- Wire outer diameter max.: 25 mm
- Flat cable width max.: 82 mm
- Wire cross section min.: 0.14 mm²
- Wire cross section max.: 35 mm²
- Pieces max.: 99999
- Piece output with single-channel feed, cable 100mm: ca. 6600 ±5%
- Piece output with single-channel feeder, wire 500mm: ca. 3100 ±5%
- Piece output with single-channel feeder, wire 1000mm: ca. 1900 ±5%
- Sequence processing (number of wires): no
- Length accuracy: Repetition accuracy: ± (0.2% + 1.0)
- Drive system: Belt drive
- Noise level: < 70 dB
- Electrical connection: 110-240VAC/5A, 50/60Hz, 320VA
- Wire protection/ground: 2 x 5 x 20 mm, 5 A
- Compressed-air connection: 6 bar
- Operating pressure: 6 bar
- Weight: 38 kg
- Dimensions/length: 510 mm
- Dimensions/width: 525 mm
- Dimensions/height: 385 mm
- Floor conditions: Level, stable and vibration-free bearing surface
- Humidity, non-condensing: 90 %
- Temperature operation: 5-45 °C
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
- Hard, tough wires: In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, Komax will be happy to provide processing samples of your wires.
Imperial
- Wire length, processing on both sides min.: 0.039 in
- Wire length max.: 39370.1 in
- Wire outer diameter max.: 0.98 in
- Flat cable width max.: 3.23 in
- Wire cross section min.: AWG26
- Wire cross section max.: AWG2
- Pieces max.: 99999
- Piece output with single-channel feed, cable 100mm: ca. 6600 ±5%
- Piece output with single-channel feeder, wire 500mm: ca. 3100 ±5%
- Piece output with single-channel feeder, wire 1000mm: ca. 1900 ±5%
- Sequence processing (number of wires): no
- Length accuracy: Repetition accuracy: ± (0.2% + 0.4)
- Drive system: Belt drive
- Noise level: < 70 dB
- Electrical connection: 110-240VAC/5A, 50/60Hz, 320VA
- Wire protection/ground: 2 x 5 x 20 mm, 5 A
- Compressed-air connection: 87 psi
- Operating pressure: 87 psi
- Weight: 84 lb
- Dimensions/length: 21 in
- Dimensions/width: 21 in
- Dimensions/height: 16 in
- Floor conditions: Level, stable and vibration-free bearing surface
- Humidity, non-condensing: 90 %
- Temperature operation: 41 - 113 °F
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
- Hard, tough wires: In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, Komax will be happy to provide processing samples of your wires.
