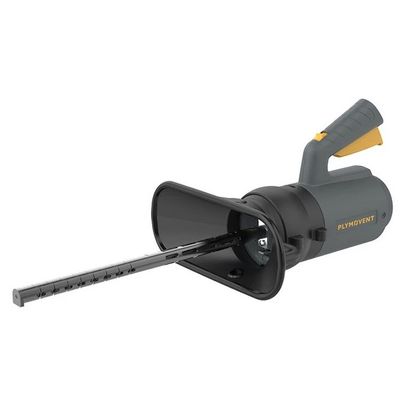

Plymovent Internal Grabber - Universal Exhaust Extraction Nozzle
The Internal Grabber® nozzle of Plymovent is a new, universal nozzle that fits the shapes and positions of any car and pickup truck exhaust tailpipes. This patented nozzle makes other nozzles obsolete.
- Adapts to any tailpipe shape
- Self-aligning squeeze grip for an effortless and smooth attachment
- Extendable nozzle skirt with soft edge to optimize exhaust gas capture
The Internal Grabber® connects to standard horizontal discharges, dual tailpipes and even flush tailpipes that exit through the vehicle bumper. Due to the protruding beak and ergonomic body, the Internal Grabber® nozzle is easy to attach.
The beak is composed of durable black passivated steel precision tube shackles, that easily grabs into any tailpipe. And the handle is made of an unique injection molded PA composite.
- Garages servicing different vehicle types
- Adapts to any tailpipe shape
- Compatible with a variety of hose diameters and any hose brand
- Extendable nozzle skirt with soft edge to optimize exhaust gas capture
- Self-aligning squeeze grip for an effortless and smooth attachment
- Pivoting collar to accommodate dual tip tailpipes
- Dual exhaust capability
- Automatic damper
- Robust beak
To optimize exhaust gas capture, the pivoting and extendable “nozzle skirt” is able to dock close to body work. Its unique design has a soft edge to protect the vehicle exterior.
The 360° pivoting collar can accommodate a single tailpipe or dual tip tailpipes.
A second grabber can be easily added for dual tailpipe exhaust systems. With the “butterfly receiver” you can easily connect a secondary Internal Grabber® to the first, no tools needed. This is a very simple way to capture fumes at the source essential for the safety of you, your employees and your customers.
This nozzle is an extremely ergonomic tool for all of your exhaust extraction needs. It features a self-aligning squeeze grip for an effortless and smooth attachment to the tailpipe. This grip is incredibly comfortable to your hand.
It has a standard built in damper that opens and closes automatically.
The Internal Grabber® comes standard with a 4 inch (100 mm) hose connection. To accommodate other hose diameters, there are 3 optional adapters available. An adapter can be effortlessly connected to the Internal Grabber®. Besides the standard Internal Grabber® size of 4 inch (100 mm), the available adapters will host hose diameters of 3 inch (75 mm), 5 inch (125 mm), and 6 inch (150 mm).
In addition, the Internal Grabber® is compatible with any hose brand.
The Internal Grabber® comes with a magnetic mountable storage “tripod”. This wall bracket provides you a safe and out of the way storage option.
The Internal Grabber® can be attached to a combination of the following products:
Exhaust hoses:
- High temperature hose: HT
- Standard temperature hose: ST
- Flame retardant and vibration resistant: EG2
- Light-weight, high-temperature, double ply exhaust hose: SNF2
- Synthetic composite fabric hose up to 300ºC (572ºF): EF2
Fixed extractors:
Hose reels:
