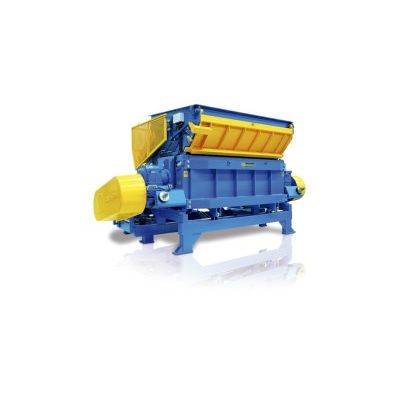

UNIVERSAL - Model FRP-181/251/301 -Medium Speed Single Shaft Shredder

FromANDRITZ Recycling Technology Center - ANDRITZ Group

SHARE

FRP is a single shaft shredder with medium speed, it is electrical and a has a pendular hydraulic pusher. The pusher presses the material against the rotor, equipped with fixed teeth that shred the material against anvils. The hydraulic pusher is driven by a hydraulic pump with a last generation proportional valve. The whole process is programmed in Franssons software in the PLC.

Most popular related searches

single shaft shredder

medium single shaft shredder

proportional valve

hydraulic press

Quickfix Teeth, quick teeth change
High energy efficiency
Low noise and dust
Easy maintenance
The rotor requires no external cooling
You can process material to 10 mm. in one step
High technical availability 96% to 98%
Ability to add water in the hopper

RECOMMENDED

All types of bulk material and bulky materials.

SHREDS

Plastics: Plastic foil, Lump, Bigbags.
Waste: Industrial/Urban waste
Paper: Paper, pulper waste, cardboard.
Wood: Laminates, pallets, wood waste.
Others: Textiles, Fishing nets

OBTAINS

Fractions of: 14 – 150 mm.

INDUSTRIES

Plastic recycling
RDF/SRF (Solid recovered fuel)
Sawmills
Pellets

FRP-181

Dimensions mm X Y Z 4.300 x 2.450 x 2.638
Entry 1.760 x 1.850
Volume inlet 5m³
Weight 13.000kg
Hydraulic 5,5kW
Main engine 110-150kW
Rotor length 1.800mm
Rotor diameter 600mm
Teeth 38/u (96mm)
Screen 10-110mm
Rotor Euroshredder
Pusher Cleanpusher

FRP-251

Dimensions mm X Y Z 5.100 x 2.450 x 2.638
Entry 2.460 x 1.850
Volume inlet 8m³
Weight 16.000kg
Hydraulic 5,5kW
Main engine 150-220kW
Rotor length 2.500mm
Rotor diameter 600mm
Teeth 50/u (96mm)
Screen 10-110mm
Rotor Euroshredder
Pusher Cleanpusher

FRP-301

Dimensions mm X Y Z 5.610 x 2.450 x 2.638
Entry 2.960 x 1.850
Volume inlet 8m³
Weight 18.000kg
Hydraulic 5,5kW
Main engine 150-264kW
Rotor length 3.000mm
Rotor diameter 600mm
Teeth 62/u (96mm)
Screen 10-110mm
Rotor Euroshredder
Pusher Cleanpusher
