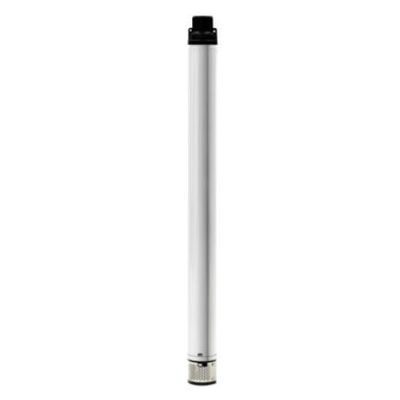

Unnati - 3" Noryl Submersible Pumps
These 3" Borewell Submersible Pumpsets are fitted with virgin quality glass filled Noryl impeller. The optimal design of impellers and diffusers offer the best efficiency. These pump sets are powered by water-filled rewindable submersible motors of continuous duty. The stator is made up of low watt loss silicon lamination and is wound with high-grade copper wire which ensures higher efficiency.
- Agriculture
-
Power Range0.37 kW – 1.1 kW (0.50 HP – 1.5 HP)
-
Speed2850 RPM, 50Hz, AC Supply
-
VersionSingle Phase 160-240V
-
Maximum Total Head106 Meter
-
Discharge Range (LPM) 20-89 LPM
-
Maximum Stage Up to 28 Stage
-
Normal Outlet Size 25,32 mm
-
Degree of Protection IP 68
-
Maximum Outer Diameter 75 mm
-
Direction of Rotation Single Phase – Counter clockwise from driving
-
Minimum Cooling Flow Along The Motor 0.15 m/sec
-
Type of Duty S1 (Continuous)
-
Method of Starting 1 Phase – Capacitor Starting Capacitor Running (CSCR)
-
Maximum starts per hour 15 times
-
Light weight and easy to install.
-
Noise free operation.
-
Radial Flow impeller design for variable conditions.
-
High quality insulated winding wire for longer life.
-
Impellers and diffusers of high quality engineering polymer (Glass filled).
-
Dynamically balanced rotating parts ensures minimum vibrations and longer life.
-
Designed for wide voltage fluctuations.
-
Better efficiency and consistent performance ensures low operation cost.
-
Easily rewindable.
