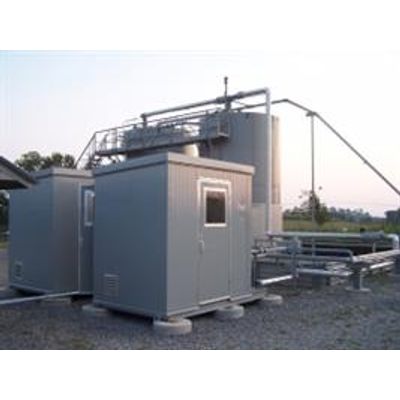

AEREON - Upstream and Midstream Oil & Gas Vapor Recovery Unit (VRUs)
From Gas and Vapor Recovery System
AEREON’s vapor recovery technology for upstream and midstream oil & gas condensate and crude storage-tank is one of three control methods that meet the Environmental Protection Agency’s stringent Quad-O/Oa compliance requirements. Our comprehensive line of VRUs includes standard designs and custom units that are reliable, low-maintenance, fully supported by in-field service teams, and backed by comprehensive warranties.
GUARDIAN and GUARDIAN HP Series
Our top-of-the-line VRU is available in pre-engineered standard models or as custom-designs. Standard GUARDIANs incorporate robust, highly reliable rotary-screw compressors -- which are most suitable for heavy and wet tank vapors -- and come with electric (20 -125 HP) or gas-driven motors delivering up to 300 PSIG discharge pressures.
Standard GUARDIAN HPs, our high pressure discharge series, are equipped with electric drives (10-60 HP) and industry-proven reciprocating compressors that provide discharge pressures of up to 1200 PSIG
GUARDIAN and GUARDIAN HP models both come packaged with state-of-the-art Allen-Bradley HMIs for improved infield operability and ease of use. Extreme weather packages are available as optional equipment.
SENTRY Series
The Sentry is a more basic, less costly, but still highly reliable VRU available only in standard configurations with either an electric (10-100 HP) or natural-gas drive (capable of powering 4-, 6-, & 8-cylinder engines). It incorporates a rotary-screw compressor and has a compact skid-based footprint. The SENTRY is not available with extreme weather packages, nor can it be customized.
Design Features
- Plug and play installation
- Top quality components
- Capable of handling high BTU gas
- Large range of turn down
- Fully welded containment skid with rock sump.
- Small foot print
- Insulated R-18 building
- Explosion Proof Heater
- Explosion Proof Lights
- Wide range of operation
- Extended service intervals
- Oversized knock out vessels
Principal Applications
- Well pad tank battery
- Central processing facility 'CTB'
- Gas blanketing recovery
- Petroleum refining plants
- Flash gas compression
- Heater treater recovery
- Bio-gas recovery / processing
- Coal bed methane and dry gas we for increased production
Standard Features
- Full B31.3 process piping
- Differential pressure monitoring of all filters
- Flanged connections with spiral wound gaskets
- CI DM & CI Dl electrical classification skids
- Allen Bradley controls and drives
- Color HMI
- Smartphone / Tablet connectivity
Choose your VRU
- Coolers - aluminum, carbon steel or 316L SS
- With or without ASME U stamp
- Compressors - rotary screw, rotary vane, or reciprocating.
- Liquid removal - electric pump or blow case
- Gas blanketing - patent pending skid mounted gas blanketing system.
- Sweet or sour gas applications
- Standard or fully customized units
- Standard sizes from 15-500 MCFD @ 200 psig
- Rapid deployment on standard products
