NeoTech RefleX - Model D228 -UV Chambers for Ultrapure Water Disinfection and Ozone Destruction
The RefleX D228 UV Chambers are innovative systems developed by NeoTech Aqua Solutions to enhance ultrapure water disinfection and aid in ozone destruction. Utilizing a patented design, these chambers reflect 99.8% of 254 nm UV light back into the chamber, ensuring maximum UV exposure and efficiency. With a footprint 75% smaller than conventional UV systems, the RefleX D228 optimizes space without compromising performance. It is engineered for minimal maintenance with features like high-output amalgam lamps and real-time dosimetry for effective operation. These systems are suitable for applications such as recreational facilities, microelectronics, food and beverage production, and commercial water treatment. Their ability to function on 120V or 230V single-phase power and control up to four chambers independently makes them highly versatile. The TUV safety certification and NSF 50 and NSF 61 certifications underscore their reliability and compliance with industry standards.
RefleX D228 UV Disinfection Chambers
An essential component in advanced oxidation processes and water disinfection, RefleX UV Chambers use patented technology to reflect 99.8% of 254 nm UV generated back into the chamber flow.
With a 75% smaller footprint than standard UV systems and 28” high-output lamps, RefleX D228 UV Chambers provide highly efficient performance with the lowest cost service schedule of any low or medium pressure UV system available.
Take command of more in less space.
RefleX Controllers provide the information you need at a glance – with the ability to control up to four treatment chambers independently from a simple menu.
Control up to four chambers from a tidy 8X9X4” footprint.

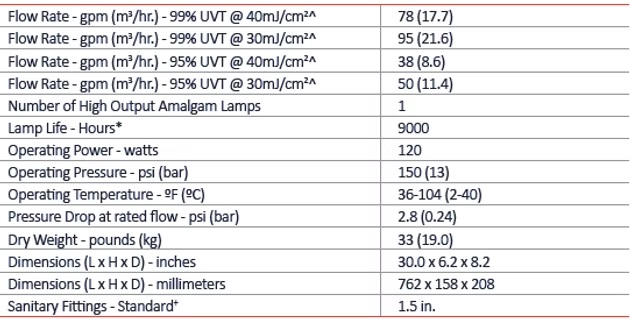

Flow Rate: 50 (11.4) gpm (m3/hr.), 95% UTV @ 30mJ/cm2
Lamps: One high-output malgam lamp
Power: 240 watts with control box
The NeoTech D228™ provides users an unparalleled level of engineering sophistication by maximizing UV distribution in a patented 99% reflective chamber.
This unique technical advantage also reduces the number of lamps and power requirements by up to 90% compared to standard UV system
Minimal Maintenance
- The service and maintenance for
- RefleX UV Chambers have three basic requirements:
Lamp Replacement:
- No tools needed
- UV Monitor:
- Changed out with screwdriver
- during operation
Cleaning:
- May be cleaned as needed in
- a CIP loop or manually brushed.
The NeoTech D228™ boasts the smallest footprint in its class. With as few as one-tenth as many bulbs compared to standard UV systems, it has the lowest operating cost and maintenance schedule in the field.
Higher reflectivity for higher transmissivity.
The UV transmissivity (UVT) of the treated water, combined with the flow rate through the unit, determine the UV dosage applied to the water. Parti cles in water typically absorb or reflect UV light which affects the water's UV transmissivity. NeoTech Aqua’s units are rated based on a UVT of 95%. The above graph illustrates the appropriate rating for the D228 based on varying UVT levels. The NeoTech Aqua Solutions technical team provides complimentary UVT analysis on customer-supplied water samples to ensure proper UV equipment sizing.
- Recreational Microelectronics
- Food and Beverage
- Life Science and Personal Care
- Commercial
- Industrial
- Cooling Towers
- Agriculture/Aquaculture
- Municipal
- Air Treatment
