CST - Model PX2+ -UV-VIS-NIR Photometric Transmitter

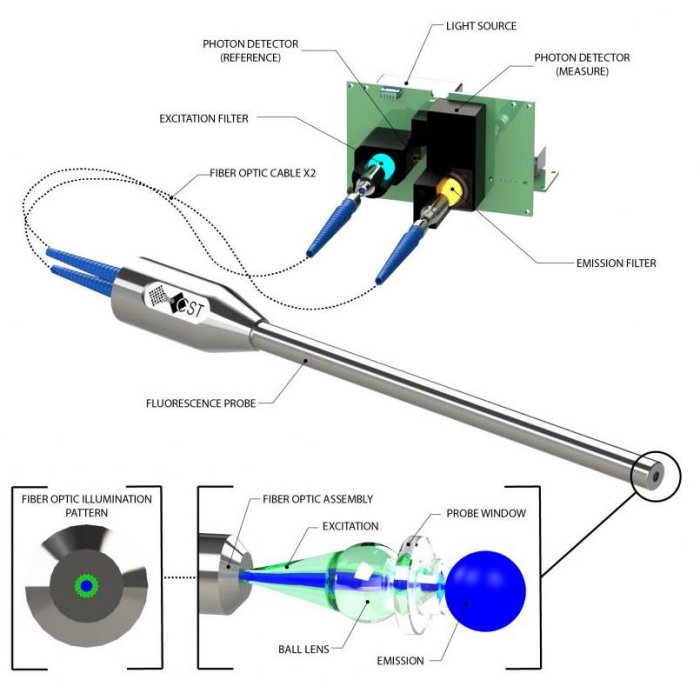

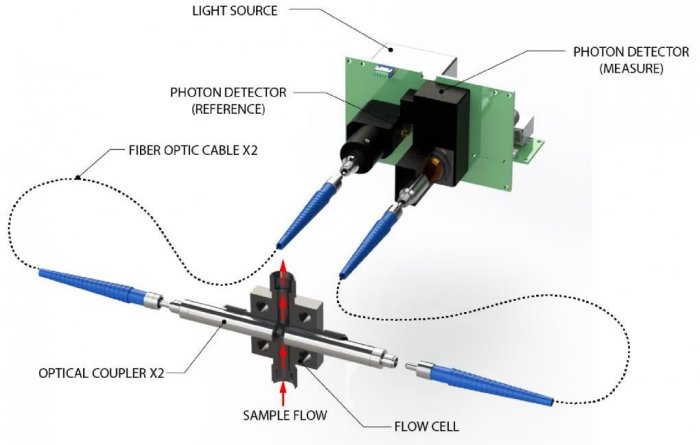

The PX2+ Photometer is designed for use in continuous process monitoring applications in a variety of industries. The PX2+ is a highly sensitive, easy to use, and compact instrument capable of making absorbance or fluorescence measurements. The PX2+ features 3.2” capacitive touch LCD that allows users to calibrate and view data. Process monitoring equipment is a great investment as economic benefits arise from greater process control and less waste. The PX2+ is designed to alert users when properties of their process stream change and no longer fall within acceptable limits. The ability to monitor process conditions in real-time allows users to observe small changes before they become much bigger problems.
Most popular related searches
UV-VIS
fiber optic probe
process monitoring system
UV-VIS/NIR
process monitoring
flow cell
VIS-NIR
fluorescence monitoring
cuvette holder
photometric transmitter
- Wavelength Range: 185-2600nm
- Accuracy: ±1% of full scale or better
- Repeatability: ±0.5% of full scale or better
- Light Source: LED, Flash Lamp
- Detector: PMT, Si Photodiode, InGaAs Photodiode
- Display: 3.2″ Capacitive Touch Screen Display
- Alarms: Contact Closure (60 VDC, 0.75 A max.)
- Analog Output: 4-20 mA, isolated
- Analog Loop Resistance: 500 ohms @ 24 VDC
- Digital Output: USB-B, RS-485 (Modbus)
- Power Consumption: 8.5 watts (max.)
- Power Requirements: 24 VDC nominal (12-48 VDC)
- Enclosure Material: Aluminum
- Size: 5” H x 5.8” W x 2.8” D
- UV-Vis Operating Temperature: 41-122 F (5-50 C)
- NIR Operating Temperature: -4-90 F (-20-32 C)
- Weight: 3.5 lbs. (1.6kg)
- Absorbance
- Fluorescence
- Reflectance
