HiguchiUVC Cold Cathode Lamp and Ballast Kit

SHARE

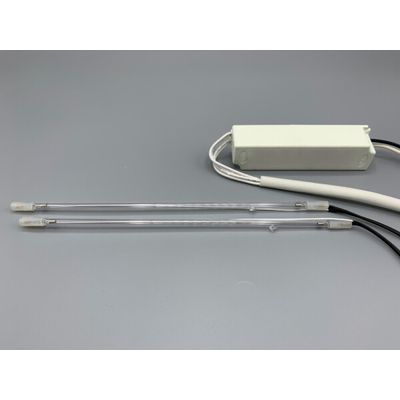

Cold Cathode UV lamp kit. Cold cathode lamps are designed to withstand frequeny on/off operation. Lamp diamiter is 3mm and the lamps can be made in various lengths. These lamps are useful in small areas. Our kit comes with 2 lamps and 1 driver with universal 100V-240V input. miniature & low profile UV lamp for disinfection of small spaces. Cold Cathode electrode is recommended for frequent On/Off operation and long service life. CCUV lamps can be made in linear or U shape in various length, UVC or Ozone producing – call for options.

Most popular related searches

Reference specification for our CCUV lampkit

  • ballast powers 2 lamps: Universal input 100V-240V
  • Lamp size: 200mm length x 5mm diameter
  • Lamp wattage: 2.5W x 2 lamps
  • Lamp current: 8.5mA
  • Lamp voltage: 300V
  • UV output power 254nm: 0.75W
  • UV intensity @ 0cm (lamp surface): 2000μW/cm2
  • Rated average life @ 70% original output: 10,000hrs

many other types available-call for options
