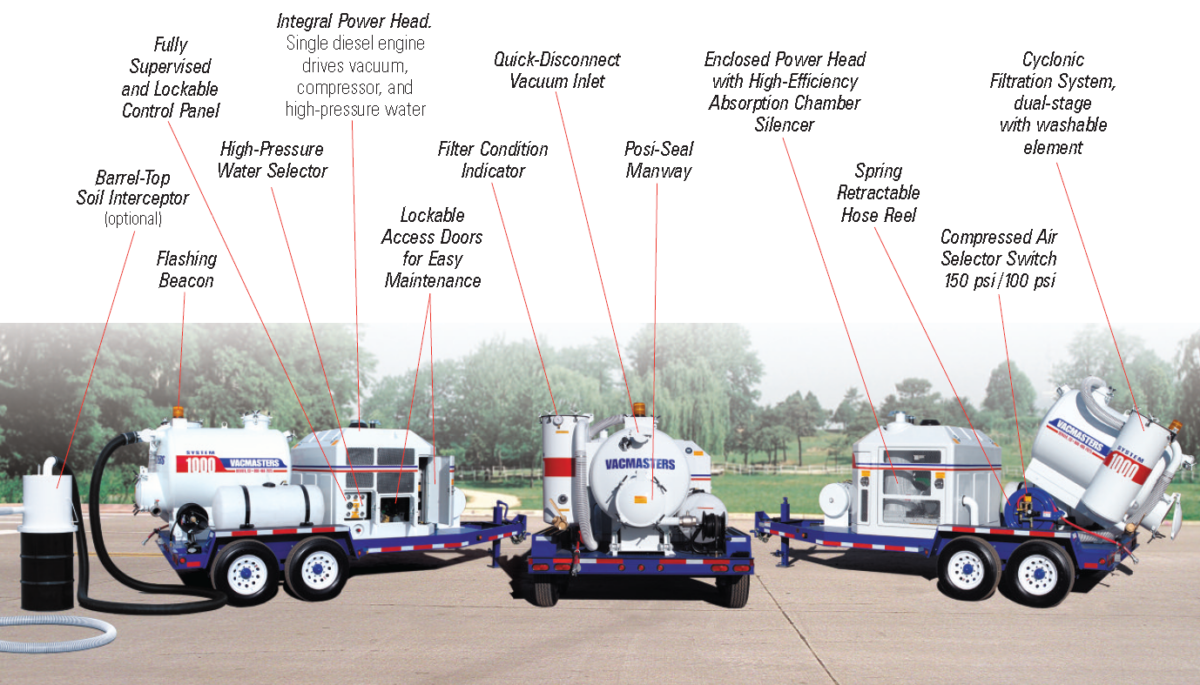

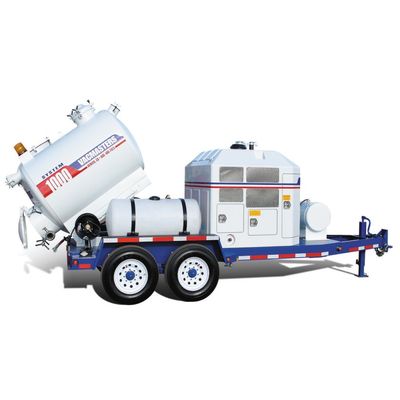

Vacmasters System - Model 1000 -Air-Vacuum Excavation System
FromVacmasters
Power Source: Engine Type: 4-Cylinder Diesel. Model: John Deere Tier 4 Final. Power Rating: 74 hp. Fuel Tank: 30-gallon. Power Transfer: Belt Drive. Tank Capacities: 300 or 500-Gallon Spoils Tank with Hydraulic Hoist. 85-Gallon Water Tank Standard (additional 85-gallon Tank Available).
Most popular related searches
vacuum excavation system
high-pressure water
vacuum excavator
excavation system
vacuum excavation
water tank
water pressure too low
rack hose
water additive
OPERATIONAL DATA
- Vacuum: 860 cfm, 15″ Hg Max Vacuum, 4″ hose
- Compressor: 100 cfm @ 150 psi (Air Lance)
- 100 cfm @ 100 psi (Air Tools)
- High-Pressure Water: 0–3000 psi @ 4 gpm
- Low-Pressure Water: 0–1000 psi for clean-up
OPERATOR CONTROL PANEL INSTRUMENTATION:
- Fully Supervised, Automatic Shut-down
- Engine RPM, Temperature, Oil Pressure
- Vacuum, Air Pressure
OPTIONAL EQUIPMENT
- Traffic Board
- Storage Boxes
- Work Lights, 12v DC Spotlight
- Vacuum Hose Rack
- Barrel-Top Interceptor
- Full Hydraulic Door
