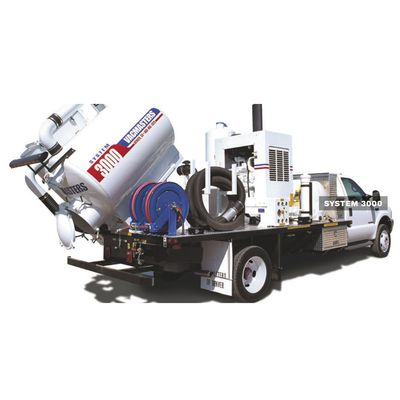

VacMasters System - Model 3000 -Air-Vacuum Excavation System
FromVacmasters

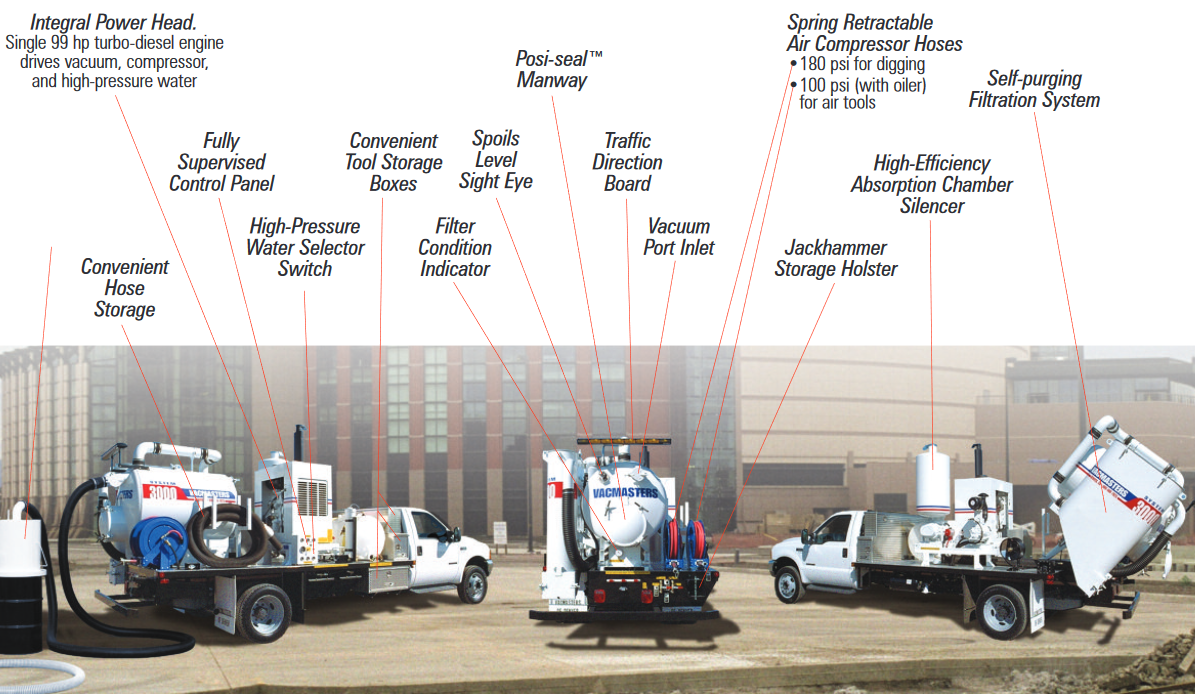

Power Source: Engine Type: 4-Cylinder Turbo Diesel. Model: John Deere Tier 4 Final. Power Rating: 99 hp. Fuel System: Interconnected to Truck System. Power Transfer: Belt Drive. Tank Capacities: 300 or 500-Gallon Spoils Tank with Hydraulic Hoist. 100-Gallon Water Tank Standard.
Most popular related searches
high-pressure water
vacuum excavation system
sandblasting system
water tank
vacuum excavator
excavation system
vacuum excavation
water pressure too low
rack hose
DIMENSIONS AND WEIGHTS:
- Length: 25’3″
- Width: 7’4″
- Height: 10’1″
- GVW (LBS): 19,500
- Empty Wt. (LBS): 16,600
OPERATIONAL DATA:
- Vacuum: 1,220 cfm, 16″ Hg Max Vacuum, 4″ hose
- Compressor: 165 cfm @ 180 psi (Air Lance)
- 165 cfm @ 100 psi (Air Tools)
- High-Pressure Water: 0–3000 psi @ 4 gpm
- Low-Pressure Water: 0–1000 psi for clean-up
OPERATOR CONTROL PANEL INSTRUMENTATION:
- Fully Supervised, Automatic Shut-down
- Engine RPM, Temperature, Oil Pressure
- Compressor Air Pressure, Temperature
OPTIONAL EQUIPMENT:
- Sandblast System
- Work Lights
- Vacuum Hose Rack
- Barrel-Top Interceptor
