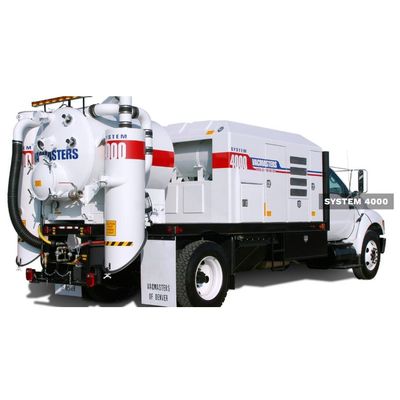

VacMasters System - Model 4000 -Air-Vacuum Excavation System
FromVacmasters
Power Source: Engine Type: 6-Cylinder Diesel. Model: John Deere Tier 4 Final. Power Rating: 155 hp. Fuel System: Interconnected to Truck System. Power Transfer: Direct Belt Drive. Tank Capacities: 450-Gallon Spoils Tank with Hydraulic Hoist. 800-Gallon Tank Optional. 85-Gallon Water Tank Standard.
Most popular related searches
high-pressure water
vacuum excavation system
sandblasting system
vacuum excavator
core drilling
excavation system
vacuum excavation
water tank
water pressure too low
drilling equipment
Dimensions and Weights:
- Length: 27’4″
- Width: 8’0″
- Height: 10’10”
- GVW (LBS): 26,000 (Non-CDL)
- Empty Wt. (LBS): 22,500
OPERATIONAL DATA:
- Vacuum: 1,220 cfm, 16″ Hg Max Vacuum, 4″ hose
- Compressor: 300 cfm @ 220 psi (Air Lance)
- 300 cfm @ 100 psi (Air Tools)
- High-Pressure Water: 0–3000 psi @ 4 gpm
- Low-Pressure Water: 0–1000 psi for clean-up
OPERATOR CONTROL PANEL INSTRUMENTATION:
- Fully Supervised, Automatic Shut-down
- Engine RPM, Temperature, Oil Pressure
- Compressor Air Pressure, Temperature
OPTIONAL EQUIPMENT:
- Sandblast System
- Core Drill Generator Package
- Towing Hitches
- Barrel-top Soil Interceptor
