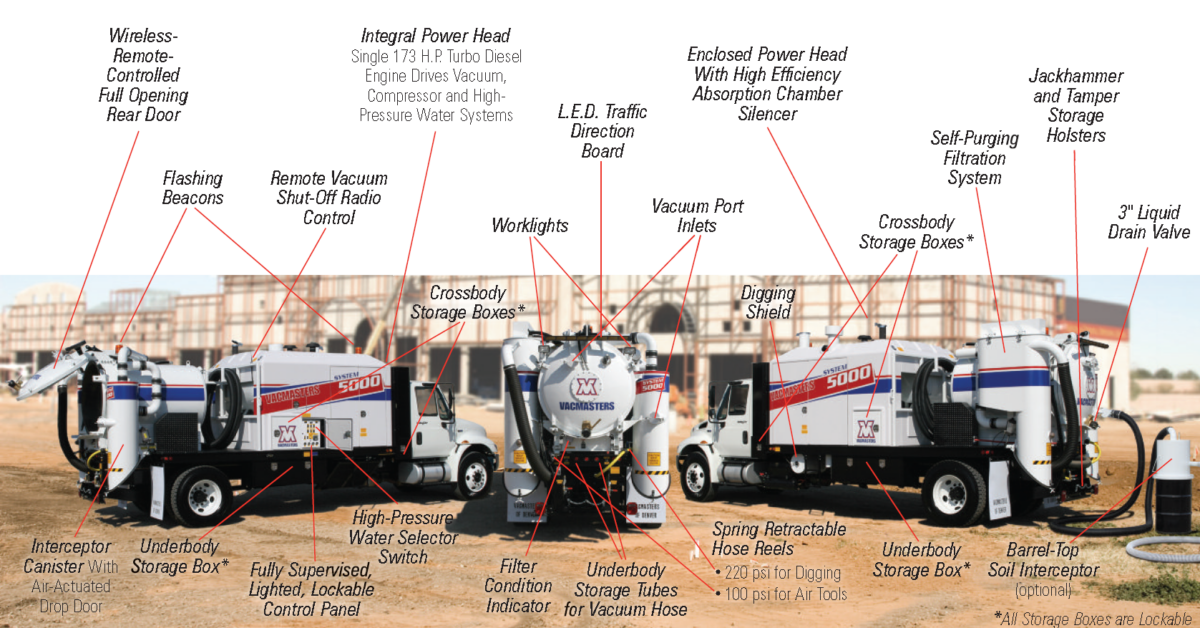

VacMasters System - Model 5000 -Air-Vacuum Excavation System
FromVacmasters
Power Source: Engine Type: 6-Cylinder Turbo Diesel. Model: John Deere Tier 4 Final. Power Rating: 173 hp. Fuel System: Interconnected to Truck System. Power Transfer: Belt Drive. Tank Capacities: 550-Gallon Spoils Tank with Hydraulic Hoist and Full-opening Rear Door. 85-Gallon Water Tank Standard.
Most popular related searches
hot water system
high-pressure water
vacuum excavation system
sandblasting system
water tank
vacuum excavator
excavation system
vacuum excavation
water pressure too low
DIMENSIONS AND WEIGHTS:
- Length: 29’9″
- Width: 8’0″
- Height: 11’2″
- GVW (LBS): 33,000
- Empty Wt. (LBS): 26,320
OPERATIONAL DATA:
- Vacuum: 1,700 cfm, 16″ Hg Max Vacuum, 4″ hose
- Compressor: 300 cfm @ 220 psi (Air Lance)
- 300 cfm @ 100 psi (Air Tools)
- High-Pressure Water: 0–3000 psi @ 4 gpm
- Low-Pressure Water: 0–1000 psi for clean-up
OPERATOR CONTROL PANEL INSTRUMENTATION:
- Fully Supervised, Automatic Shut-down
- Engine RPM, Temperature, Oil Pressure
- Compressor Air Pressure, Temperature
OPTIONAL EQUIPMENT:
- Sandblast System
- Barrel-top Soil Interceptor
- Towing Hitches
- Extra Water Capacity
- Hot Water System
- 4.2 KW AC Generator
