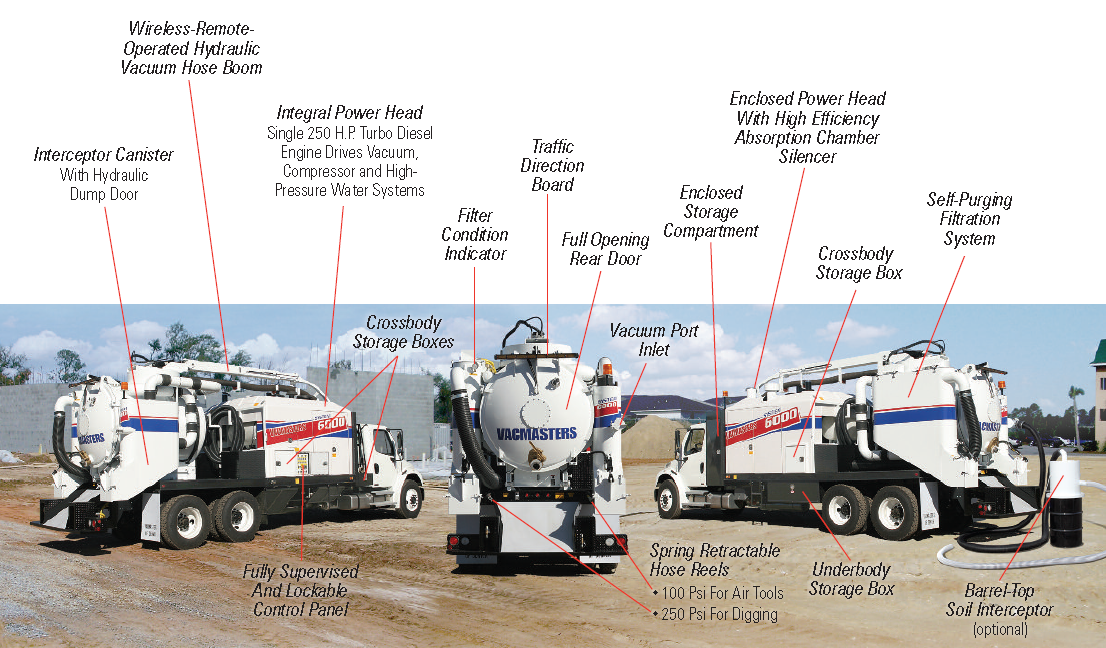

VacMasters System - Model 6000 -Air-Vacuum Excavation System
FromVacmasters
Power Source: Engine Type: 6-Cylinder Turbo Diesel. Model: John Deere Tier 4 Final. Power Rating: 250 hp. Fuel System: Interconnected to Truck System. Power Transfer: Direct Belt Drive. Tank Capacities: 950-Gallon Spoils Tank with Hydraulic Hoist and Full-opening Rear Door. 85-Gallon Water Tank Standard.
Most popular related searches
high-pressure water
vacuum excavation system
sandblasting system
water tank
water supply
vacuum excavator
excavation system
vacuum excavation
water pressure too low
water additive
DIMENSIONS AND WEIGHTS:
- Length: 34’10”
- Width: 8’0″
- Height: 12’7″
- GVW (LBS): 52,000
- Empty Wt. (LBS): 38,400
OPERATIONAL DATA:
- Vacuum: 2,220 cfm, 16″ Hg Max Vacuum, 5″ hose
- Compressor: 350 cfm @ 250 psi (Air Lance)
- 350 cfm @ 100 psi (Air Tools)
- High-Pressure Water: 0–3000 psi @ 4 gpm
- Low-Pressure Water: 0–1000 psi for clean-up
OPERATOR CONTROL PANEL INSTRUMENTATION:
- Fully Supervised, Automatic Shut-down
- Engine RPM, Temperature, Oil Pressure
- Compressor Air Pressure, Temperature
OPTIONAL EQUIPMENT:
- Sandblast System
- Work Lights
- Barrel-Top Interceptor
- 4.2 KW A.C. Generator
- Additional Water Supply (Up to 400-gallon)
