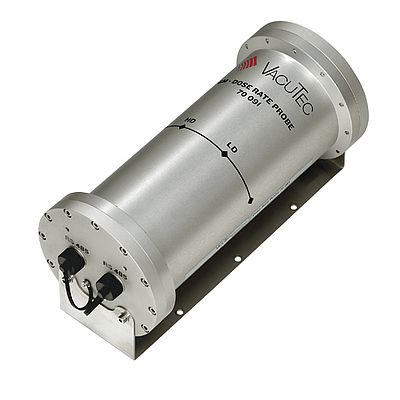

VacuTec - Model 70 091 -Geiger-Mueller Dose Rate Probes for Radiation Monitoring

SHARE
The Geiger-Mueller Dose Rate Probes, specifically model 70 091, are precision instruments developed by VacuTec for diverse radiation measurement tasks. These probes are tailored for applications ranging from environmental surveillance to operations in nuclear power plants. At their core, the dose rate probes use two Halogen-quenched Geiger-Mueller tubes, encased in a durable waterproof aluminum housing, ensuring reliability under demanding conditions. They leverage digital interfaces like RS 485 or USB for seamless integration with PCs or network setups. Unique to these probes is their method of dose-rate determination, which benefits from measuring the averaged time interval between counter tube activation and the first detection event, rather than relying solely on traditional counting. This innovative approach provides excellent linear response across a wide dose-rate range, up to 100 Sv/h. The probes also interface with the DRMoni software, allowing users to visualize data and set parameters for optimized performance. A supportive feature for operators, it includes customizations for interface descriptions tailored for the specific probes.
Most popular related searches
radiation monitoring
environmental monitoring
geiger probe
contamination monitoring
contaminant monitoring
liquid monitoring
waterproofing
radiation probe
data visualization

This dose rate probes 70 091 was developed to be able to provide efficient solutions to a great variety of measuring problems. Its field of application ranges from environmental monitoring to measuring functions in nuclear power stations. Two Geiger-Müller tubes are fully enclosed in a robust and waterproof aluminium housing. Counter tube combinations can be selected for optimum adjustment to the measuring problem to be solved. The digital interface RS 485 or USB (alternatively) makes it possible to communicate directly with a PC or build up networks with addressable single probes.



  • high flexibility due to customized configurations
  • wide measuring range
  • robust and waterproof housing
  • the probes are energy compensated according to IEC 60846
  • barrel checks
  • limit checks in nuclear power plants
  • contamination monitoring of liquids
  • environmental monitoring
