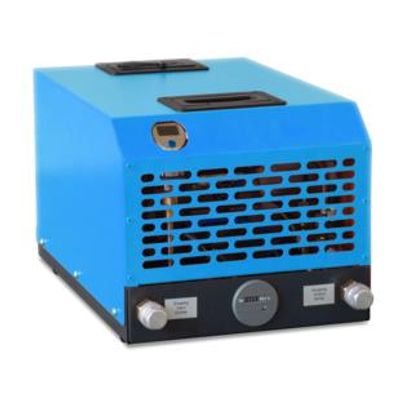

DILO - Model Mini Series-HE-ZB093R30V2 -Vacuum Compressor Unit for Helium Recovery (3.3 M³/H)
Operating voltage: 100 - 240 V / 50 / 60 Hz alternating current. For helium recovery down to 5 mbar in combination with the MINI compressor HE-ZB095R12. The MINI-SERIES HE stands for efficient gas handling of small gas compartments with a gas recovery of up to 5 mbar. The handy mini-components for recovering, consisting of the compressor and a Vacuum compressor, are connected to a unit via Wire braied hoses.
- Gas type: HE
- Gas recovery: < 5 mbar
- Recommended gas quantity: < 40 kg
- Operation: manual
- DILO couplings: DN8
System components
Units of the Mini-Series - Helium recovery on small gas compartments
The Mini Series is composed of a number of units and is perfectly suited for gas handling of small gas compartments and gas reclaiming to 5 mbar. We recommend using this series for small gas quantities. Oilfree compressors allow gas handling without contamination by oil residues.
- vacuum compressor for recovery of helium [3.3 m³/h (at 50 Hz); 4 m³/h (at 60 Hz), final vacuum 5 mbar
- digital vacuum indication 0 - 400 mbar
- DILO couplings DN8 (M24x1.5)
- electric control
- 2 m long electrical connecting cable
- paint: blue-anthracite
- Dimensions (W x H x D): 325 x 290 x 510 mm
- Weight: 24 kg
- Ambient temperature: 0 to +45 °C
- Operating temperature: 0 to +45 °C
- Storage temperature: -20 to +60 °C
