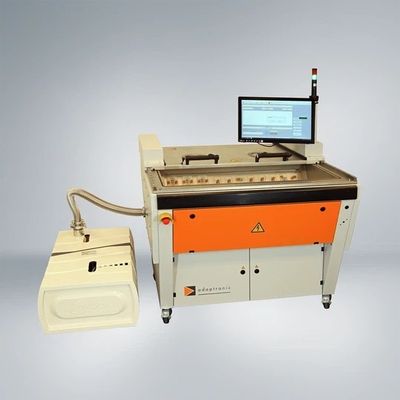

Adaptronic - Model TD1200-VTS -Vacuum Test System
The TD1200-VTS vacuum test system is a test bench with a vacuum chamber and sealed adapters, which make it particularly suitable for voltage tests on unshielded cable harnesses. High-voltage wire harnesses, such as those used in electric vehicles, must undergo dielectric strength testing. When testing unshielded wires, standard practice involves the use of conductive liquids or gases, which can be hazardous to health. The vacuum test system from adaptronic enables innovative dielectric strength testing in a vacuum and therefore in the medium of air. For this purpose, the HV wire set is inserted into a completely enclosed metal chamber (negative terminal) and is connected to the measuring generator (positive potential). If an arc is visible during the test, there is a defect. The vacuum therefore makes it possible to safely test the wire harness and distinguish between pass and fail. Optionally, the NT 700-11 can also be used for connection, short-circuit, and insulation tests.
Patented test method
Vacuum technology enables dielectric strength testing of unshielded high-voltage wire harnesses. Thanks to the vacuum chamber, no other liquids or gasses are required.

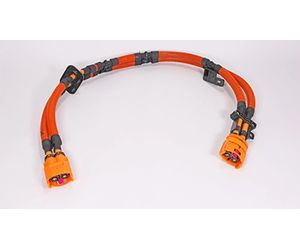

The T1200-VTS is designed for complex, three-dimensional wire harnesses. Testing with additionally mounted components such as clips, cable ducts, or tapes is also possible.
The vacuum test bench is optimally prepared for integration into modern production environments and MES with standardized interfaces such as the OPC UA software.

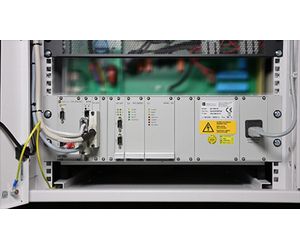

The built-in wiring tester saves valuable space in production. All components are clearly arranged and easy to maintain.
TD1200-VTS
Metric
- Dimensions/depth min.: 1090 mm
- Voltage (AC), input min.: 400 V
- Voltage, input (AC): 400 V
- Voltage (AC), input max.: 400 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Voltage, input, connector: CEE plug (400 V, 16 A, 5-pole)
- Ambient temperature, operation min.: 10 °C
- Ambient temperature, operation max.: 40 °C
- Ambient temperature, storage min.: 10 °C
- Ambient temperature, storage max.: 60 °C
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Compressed-air connection: 6-8 bar
Imperial
- Dimensions/depth min.: 42.91 in
- Voltage (AC), input min.: 400 V
- Voltage, input (AC): 400 V
- Voltage (AC), input max.: 400 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Voltage, input, connector: CEE plug (400 V, 16 A, 5-pole)
- Ambient temperature, operation min.: 50 °F
- Ambient temperature, operation max.: 104 °F
- Ambient temperature, storage min.: 50 °F
- Ambient temperature, storage max.: 140 °F
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Compressed-air connection: 87.02 - 116.03 psi
