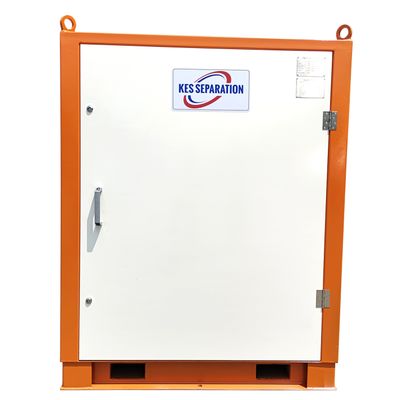

KES Separation - Vacuum Transfer Pump
Introducing the KES Vacuum Transfer Pump/Cuttings Blower, an efficient solution for offshore cuttings management. Experience seamless operations with this state-of-the-art equipment. With its compact design, IEC/ATEX certification for hazardous environments, and corrosion-resistant features.
Vacuum Transfer Pump, also called Cuttings Blower, is a pneumatic slurry transfer pump for liquid, slurry, and solids transfer. It’s a high vacuum loading solids transfer pump, and it can be applied at tough environmental for solids or sludge transfer with good working performance and less maintenance.
The Vacuum Transfer Pump has a wide application in drilling mud transfer, waste pit mud transfer, hazardous waste transfer, bulk materials transfer, construction material transfer, animal waste transfer etc. The pump can be used for both light and high dense materials, wet or dry materials. It can also be called Sludge vacuum pump, solids transfer pump, etc.
In some work conditions, the user might need a large transfer capacity to convey bulk materials in short time. And we can customize Group Pumps of combination of 2 or 4 vacuum pumps for a higher flowrate, with just one suction and one discharge.
- Work with pneumaticair; can meet the requirements of all explosion-proof areas;
- Unique integrated sealing design can meet the requirements of highly corrosive workplaces, as well as outdoor humid environment;
- Strong self-priming capacity, long conveying distance, material suction depth up to 6-10 meters, suction horizontal distance up to 50 meters, discharge horizontal distance up to 1000meters;
- It can be used to transport a wide range of materials, from liquid, mixed liquid, to solid block particles and powders;
- The maximum particle size of solid materials that can be transported can reach 75mm, and the solid content of mixed liquid that can be transported can reach 80-100%;
- Compact design structure, small footprint, easy to install and move;
- Without any rotating parts, conveying parts and sealing parts in the pump,not easy to wear;
- KSVP40 model pump with automatic operation andmanual operation mode, easy to operate.
- Drilling mud transfer
- Waste pit cleaning
- Hazardous waste recovery
- Oil sludge, tank bottoms residual removal and transfer
- Barge holdings and vessel bottom clean out
- Bulk tank and silo transfer of material
- Sand; Course, fine, conventional and frac sand
- Diatomaceous earth
- Animal waste etc.
