Vahn-Tech - Forged Gate Valve

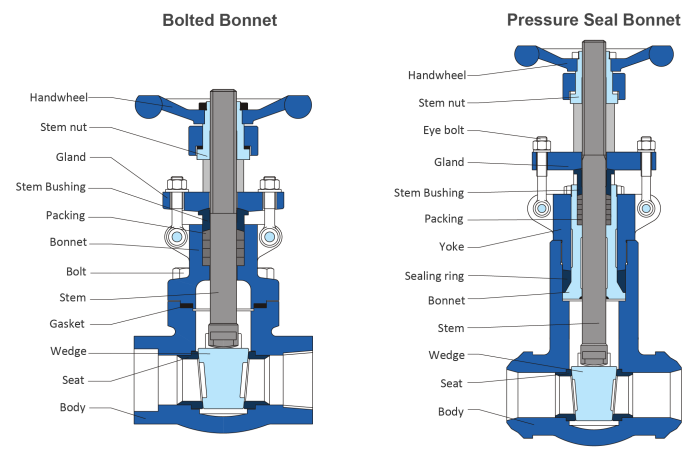

VAHN-TECH offers a large range of configurations of API 602 Forged Gate Valves: Bolted or welded bonnet, pressure seal bonnet, threaded connection, SW, BW, extended nipple, welded or integral flanges, etc.
Most popular related searches
- Design Standard: API 602 / BS 15761
- Size Range: ½” – 2”
- Pressure Rating:
- Class 150 – 2500
- Class 800
- Working Temperature:
- -196°C ~ +650°C
- -320°F ~ +1200°F
- End Connection:
- ANSI B16.5 - Flange
- ASME B16.25 - Butt-Weld
- ASME B16.11 - Socket-Weld / Threaded Ends
- Face-to-Face: ASME B16.10
- Test & Inspection: API 598 / API 6D
