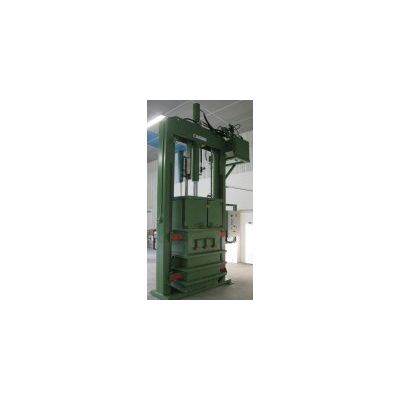

Valvan - Model V40 -Lift Single Box Vertical Baling Press Manual Feeding
These small and compact baling presses are suited to be placed in spaces with limited room. In-between production lines, in store rooms or distribution centres . They are used to bale limited amounts of cardboard , plastic foils, yarn, textiles and trim waste. Filling is done manually using a secured loading door at the front of the pressbox. Several versions and specifications are available. Please contact us to discuss the possibilities for baling your product in our vertical recycling baling presses.
The V40 lift box balers are used for producing large and heavy bales of different types of materials.
Equipped with a lifting pressbox to allow the bales to be easily wrapped and strapped while being under pressure.
Retainer hooks are provided in the pressbox to allow for several fillings of light density materials.
- Balesize : ± 1150 mm (L) x ± 730 mm (W) x ± 1100 mm (Max. Height)
- Baleweight: 300-450 kg (strongly dependent on materials to be baled)
- Available pressing foces: 40 Ton and 60 Ton (Heavy duty)
- Version available with several filling doors for stacked goods. (f.e. tyres )
- Integrated Automatic Strapping system
- Automatic inline wrapping two sides (top and bottom sheet)
Some applications require only a top and a bottom sheet to store the bales in a warehouse before further processing.
To achieve this we use a sheet applicator to apply top- and bottom sheet before strapping takes place.
- Offline wrapping of the allready strapped bale
