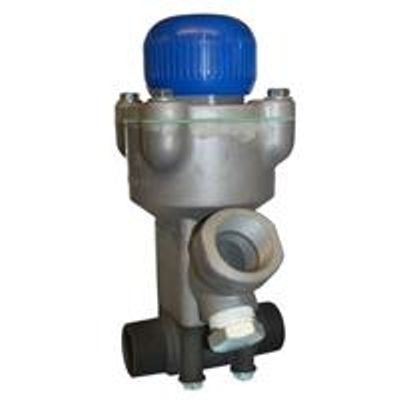

Schmidt Thompson - Model II -Valve
The next-generation valve in the Thompson Valve line. Shuts off abrasive flow to the nozzle and seals the tank at the same instant. Ideal for multiple outlet use. Offers significant improvements over the original Thompson Valve designed to improve performance, make servicing easier and extend service life. Faster response, finer control. More sleeve choices available to accommodate a wider range of abrasives and applications. The abrasive airblast industry`s choice for abrasive metering and control.
Most popular related searches
tungsten carbide
dust prevention
chamber valve
dust cleaning
control valve
materials performance monitoring
piston valve
material testing
- Sleeve:Available in tungsten carbide, tungsten carbide slotted, urethane, stainless steel or tungsten carbide multiport, large bore
- Piping Sizes:1" MNPT, 1 1/4" MNPT, 1 1/2" MNPT, 2" MNPT
- Weight:11 lbs.
- Dimensions:10.5" x 5" x 9"
- Made of only highest quality, performance tested materials for durability
- Bolt-on cap provides easy access to piston and seal
- Anti-vibration disc holds knob in place during transit
- Triple plunger seals keep media from entering piston chamber, extends valve life
- Modular components are precision manufactured to align accurately, ensure proper assembly
- Broad range of sleeves available for particular abrasives and applications
- Seat placed in body allows for easy removal during servicing
- Twin breather vents under the knob prevent dust from entering piston chamber
- Spring designed for long life
- O-ring on sleeve prevents dust migration
- Clean-out port directly under inlet provides easy removal of dirt or debris
