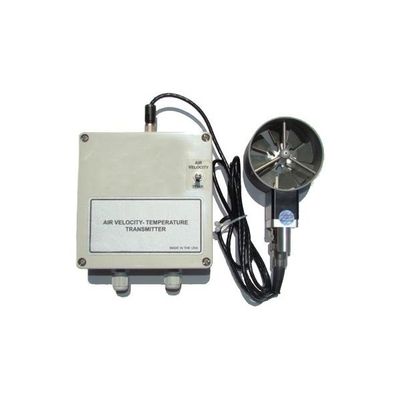

Kanomax - Model AT400 and TAT420 -Vane Type Airflow Transmitter
The AT400 and TAT420 air velocity transmitters supply accurate air velocity and (TAT420) temperature data from a building or process airflow on a continuous basis to a computer, chart recorder, printer and meter or control circuit. The THT500 humidity-temperature transmitters supply accurate humidity and temperature data from a room or process air source on a continuous basis to a computer, chart recorder, printer, meter or control circuit. Every instrument has terminals for both DC and AC power and 0-1 V, 0-5V and 4-20mA output.
Most popular related searches
indoor air quality monitoring
air velocity monitoring
air velocity transmitter
humidity temperature transmitter
indoor air quality
chart recorder
temperature transmitter
air flow instrument
velocity monitoring
air flow transducer
- Specially designed for monitoring indoor air quality.
- Premier series cabling and probe connections.
- Simultaneous measurement of air velocity and temperature.
- The heavy, all metal probe can be used for airstreams that have a wide range of humidity, temperature and contaminants without compromising accuracy.
- HVAC Testing & Balancing
- IAQ Investigations
- Industrial Hygiene Ventilation Verification
- Filter Face Air Velocity Measurement
- Measurement Specifications
- Air Velocity:
- Metal rotating vane: AP275/APT275: 2.75″ diameter
- AP100/APT100: 1″ diameter
- Range:
- 1″ Probe: 300 to 6890 FPM (1.5 to 35 m/s)
- 2.75″ Probe: 50 to 7800 FPM (0.2 to 40 m/s)
- Accuracy:
- 1″ Probe: ±0.5% of Full-scale + 0.75% of READING ±1 digit
- 2.75″ Probe: ±1.0% of READING ±1 digit
- Resolution: 1 FPM or 0.01 m/s
- Temperature:
- Range: APT Probe: -4 to 176 F (-20 to 80C)
- Accuracy: ±0.5℃
- Resolution: 0.1 F or 0.1℃
- General Specifications
- Analog Output:
- Current output: DC 4~20mA
- Voltage output: DC 0~1V or 0~5V
- Operating Temperature:
- Transmitter: -4 to 176F (-20 to 80C)
- Probe: -22 to 212F (-30 to 100C)
- Power Supply:
- 120 or 220 VAC (50-60 Hz)
- 10 to 30 VDC
- Dimensions: Transmitter Housing: W 4.8 x D 2.2 x H 4.8 inches (12.2 x 5.6 x 12.2 cm)
- Warranty:
- 1 year: 1 x Rotating Vane Probe Head, Probe cable, Operation Manual, NIST Certificate
- TAT420: 1 x Rotating Vane Probe Head, Probe cable, Operation Manual, NIST Certificate
