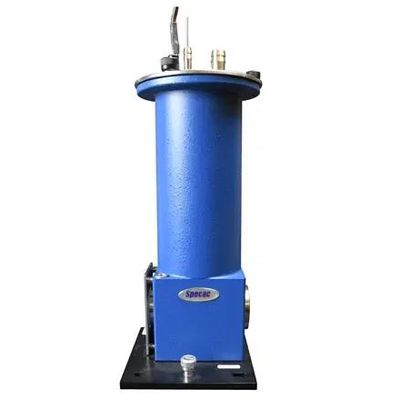

Specac - Model VT Cell -Variable Temperature Cell Holder
The Variable Temperature Cell Holder P/N GS21525 is the ideal accessory to use for the transmission study of liquid or solid samples at various temperatures ranging from -190 ºC to 250 ºC.
- Programable Controlled temperatures from -190ºC to 250º
- Dewar Cooling System Interictal dewar for temperature control
- Heated Jacket To prevent window condensation
- Flow Mode For liquid Flow Cells
- Mounting Via Baseplate or 3 x 2 Slide Mount
- Programmable controlled temperatures from -190°C to 250°C (Stability ±0.1°C)
- Holds 10 mm pathlength quartz cuvette
- Dewar cooling system
- Heated Jacket windows to prevent condensation
- Benchmark™ Baseplate or 3" x 2" mounting options
Variable Temperature Cell Holder
The Variable Temperature Cell Holder is the ideal accessory to use for the transmission study of liquid or solid samples over a broad range of temperatures. The cell consists of a vacuum jacket that contains a refrigerant dewar/cell holder assembly and a heating block that contains the appropriate cell, and allows variable temperature over the range from -190°C to 250°C. NaCl windows are provided as standard on the cell holder, but a range of other UV, Vis, NIR and Infrared transmitting window materials are also available. This transmission cell holder is designed for use with Specac’s Advanced Liquid or Solid Transmission Cells, or High Pressure Liquid Cell. The cell holder is installed into an optical spectrometer sample compartment either via the 3" x 2" slide mounting plate, or with a Benchmark™ baseplate. Note that this accessory requires an appropriate sample cell for its use, and that the temperature range of this transmission cell should be taken into account in its use.
Four Port Variable Temperature Cuvette Holder
The Variable Temperature Cuvette Holder is a four-port version of the standard Variable Temperature Cell Holder, designed to accommodate quartz glass cuvettes of up to 10 mm pathlength. This cell holder is intended for liquid sample Raman, Fluorescence, and UV spectroscopic analysis. The four-port nature of the design means that collection of the (scattered) radiation can be at a 90° angle to the incident radiation as well as at a 180° angle as measured with a standard configuration. Specac’s Variable Temperature Cuvette Holder operates over temperatures from -190°C to 250°C. A pair of Spectrosil B (UV-grade fused silica) is provided as standard for two of the cell holder windows, and the other two window ports are fitted with blank (metal) windows. The cell holder is installed into an optical spectrometer sample compartment either via the 3" x 2" slide mounting plate, or with a Benchmark™ baseplate.
- Analysis under extreme temperature conditions
- Absorption band study at low temperatures
- Polymerization studies
- Phase transition studies
- Reaction kinetics
- Polymorphism
- Catalysis
- Oxidation studies
- (VT Transmission Cell) AN6: Analysis of the Thermal Runaway Properties of Germanium using the Variable Temperature Cell Holder
