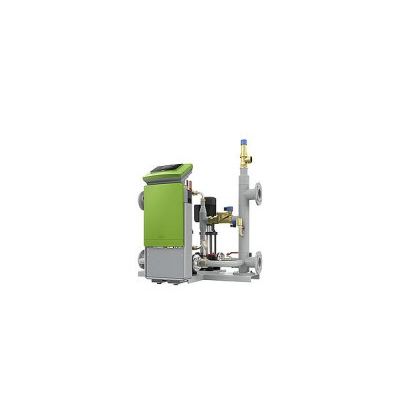

Variomat Giga - Model GH 50 -Hydraulic Module

Implementation of the functions pressure maintenance and automatic water make-up in heating and chilled water circuits.

In addition, degassing of the system water is possible for operating parameters <= 70 °C. This feature requires appropriate pipe connection to the system circuit.

All components are integrated into a self-supporting, plastics coated steel tube construction with base plate in a compact and easy to access way and arranged.

Pressure is maintained via two, duty/ standby, low-noise,smooth acceleration, multistage high-pressure pumps with vibration isolation in conjunction with two parallel spill-lines. These include two y-type strainers and actuated motor ball spill valves.

A separate additional, manual reset, pressure protection safety device is installed to shut the control gigamat down when system pressure falls below minimum pressure.

Make-up occurs via an electrically controlled solenoid valve.

This hydraulic module has to be used combined with a separate GS Control unit (separate article).

Type: GH 50

• Pumps: 2 Stück
• Overflow lines: 2 Stück
• perm. excess op. pressure: 16 bar
• electr. power consumption: 2 * 1,1 kW
• perm. ambient temperature: >0..40 °C
• diaphragms GG/GF vessels: >0..70 °C
• po setting: bis 4,0 bar
• Sound level: <58 dB(A)
• Expansion line: DN 80/PN 16
• basic vessel GG: DN 80/PN 6
• Water make-up: Rp 1/2
• with control variant type: GS 1,1
• Height/width/depth (mm): 1200/1170/830
• Net weight: 210 kg
• Nominal heat capacity: ? kW
• Heat generator SV: ? bar
• Heat generator STL: ? °C
• Static height: ? m
