VEGAFLEX - Model 81 -TDR Sensor for Continuous Level and Interface Measurement Of Liquids
Universal TDR sensor for liquids of all kinds. Application area: Cable, rod or coaxial sensor. Even in applications with steam, buildup, foam or condensation, the sensor delivers precise and reliable readings – also in standpipes or bypass pipes. The VEGAFLEX 81 level sensor measures maintenance-free all kind of liquids. Even in applications with vapour, buildup, foam generation and condensation, the sensor delivers precise and reliable measured values. The VEGAFLEX 81 is the economical solution for various level and interface measurements.
- The guided adjustment enables a simple, time-saving and reliable setup
- Shortenable probes offer a simple standardisation and highest flexibility in the planning
- Comprehensive diagnostic possibilities ensure a maintenance-free operation and hence a high plant availability
The ace for level measurement and interface measurement in all liquids
The VEGAFLEX 81 guided radar sensor is exceptional when it comes to measuring the level or interface of liquids. Guided radar is extremely versatile and can be found in almost every industrial sector. Whether bitumen or liquefied gas, in storage containers or standpipes, in a metering tank or in tank farms – VEGAFLEX 81 measures the level or interface (separation layers) of liquids with great reliability and accuracy.
Guided radar delivers reliable measurements data for control or safety systems for
- Level measurement in ammonia storage tanks

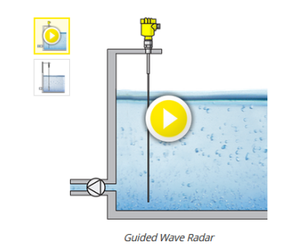

- Level measurement in standpipes

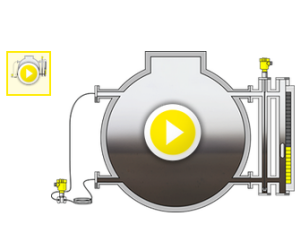

- Interface measurement in storage tanks, bypass tubes, standpipes

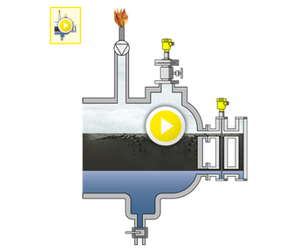

Level measurement in the flare knockout drum
To the application

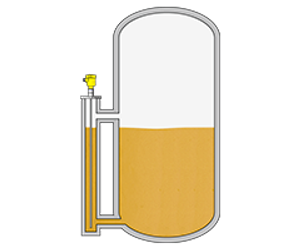

Level measurement in propane bullets
To the application
- Measuring range -Distance: 75 m [Meter - Foot]
- Process temperature: -60 ... 200 °C [°C - °F]
- Process pressure: -1 ... 40 bar [Bar - kPa - psi]
- Accuracy: ±2 mm
- Version:
- Basic version for exchangeable cable ø 2; ø 4 mm
- Basic version for exchangeable rod ø 8 mm
- Basic version for exchangeable rod ø 12 mm
- Coax version ø 21.3 mm for ammonia application
- Coax version ø 21.3 mm with single hole
- Coax version ø 21.3 mm with multiple hole
- Coax version ø 42.2 mm with multiple hole
- Exchangeable rod ø 8 mm
- Exchangeable rod ø 12 mm
- Exchangeable cable ø 2 mm with gravity weight
- Exchangeable cable ø 4 mm with gravity weight
- Exchangeable cable ø 2 mm with centering weight
- Exchangeable cable ø 4 mm with centering weight
- Exchangeable cable ø 4 mm without weight
- exchangeable, PFA-coated cable ø4 mm with non-coated centering weight
- Materials, wetted: parts:
- PFA
- 316L
- Alloy C22 (2.4602)
- Alloy 400 (2.4360)
- Alloy C276 (2.4819)
- Duplex (1.4462)
- 304L
- Threaded connection: ≥ G¾, ≥ ¾ NPT
- Flange connection: SDN25, 21"
- Seal material:
- EPDM
- FKM
- FFKM
- Silicone FEP coated
- Borosilicate glass
- Housing material:
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
- Protection rating:
- IP66/IP68(0,2bar)
- IP66/IP67
- IP66/IP6S (1 bar)
- Output:
- Profibus PA
- Foundation Fieldbus
- 4... 20 mA/HART - two-wire
- Mod bus
- 4... 20 mA/HART - four-wire
- Ambient temperature: -40... 80 °C
Approvals:
- Scope:
- ATEX / Europe
- CSA/Canada
- FM / USA
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- EAC (GOST) / Russia
- IEC/worldwide
- NEPSI/China
- UKR Sepro / Ukraine
- INMETRO/Brazil
- CCOE/India
- Explosion protection:
- Intrinsic safety "i"
- Flameproof enclosure "d"
- Dust explosion protection through housing "t"
- Foodstuffs/Pharma: FDA
- Ship approval:
- ABS
- BV
- CCS
- DNV
- GL
- LR
- NK
- RINA
- Overfill protection:
- WHG
- VLAREM II
- SIL qualification: SIL2
Display & adjustment:
- Adjustment:
- PLICSCOM
- PC, PACTware and DTM
- HART-Communicator
- Software (e. g. AMS™, PDM)
- Indication:
- Display/adjustment module PLICSCOM
- VEGADIS 81
- VEGADIS 82
