VEGAPULS - Model 11 -Compact Radar Sensor for Continuous Level Measurement
For simple measuring tasks, plastic housing IP66/IP67, Type 4X. Application area: 4 ... 20 mA output, measuring range up to 8 m, accuracy ±5 mm. VEGAPULS 11 is the ideal sensor for non-contact level measurement of liquids and bulk solids in simple applications. It is particularly suitable for use in water treatment, storage tanks with acids, lyes and additives in all industrial areas, or for measuring levels in plastic tanks from the outside through the tank wall. In bulk solids the sensors are used in small bulk solids silos or open containers.
Most popular related searches
level monitoring
process water tank
water tank level monitoring
non-contact level monitoring
water tank level
tank level monitoring
gravel bed filter
continuous level monitoring
water tank
process water
- High plant availability through non-contact measurement
- Exact measurement results independent of medium properties and process conditions
- Maintenance-free operation due to non-contact 80 GHz radar technology

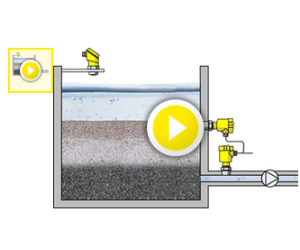

Gravel bed filter
Differential pressure and level measurement in a gravel filter
To the application
- Measuring range - Distance: 8 m [Meter - Foot]
- Process temperature: -40 ... 60 °C [°C - °F]
- Process pressure: -1 ... 3 bar [Bar - kPa - psi]
- Accuracy: ± 5 mm / ± 0.2"
- Frequency: 80 GHz
- Beam angle: 8°
- Materials, wetted parts: PVDF
- Threaded connection: G1½, 1½ NPT, R1½
- Seal material: FKM
- Housing material: Plastic
- Protection rating: IP66/IP67, Type 4X
- Output: 4 … 20 mA
- Ambient temperature: -40 ... 60 °C
Display & adjustment
Adjustment
- PC, PACTware and DTM
- Smartphone / Tablet / PC via Bluetooth
