VeneerDryer Feeder

FromUSNR
SHARE

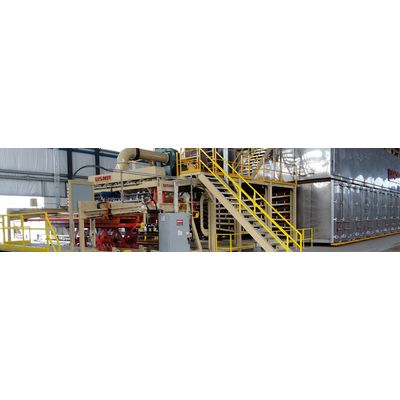

The new design accommodates the new high production 6-deck veneer dryer by moving from 60 veneer sheets per minute to 66. Individual spring-loaded feed wheels insure precise loading of veneer onto the dryer infeed. The feed-rolls are powered by a 3 hp motor and ACVS drive. Hydraulic cylinders on each side of the tipple provide smooth, fast and accurate indexing of the tipple from deck to deck using an alternate deck-feeding program.

Most popular related searches
  • Individually mounted, spring-loaded feed wheels
  • Hydraulic cylinder tipple hoist movement
  • Control system synchronizes the feeding operation with the dryer speed, and is capable to handle varying lengths of veneer
  • Veneer stack lift maintains a constant top sheet height
  • Reversing carrier chains mounted along the face of the feeder move the veneer stacks from the preload conveyor
