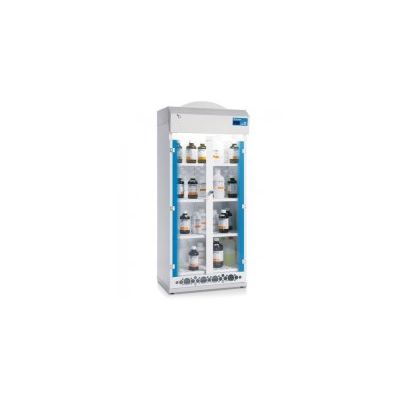

CRUMA - Model 2010 -Ventilated Chemical Storage Cabinet

Cruma 2010 vented chemical storage cabinet, with the same filtration technology used by Cruma in its fume cupboards during more than 38 years, allow the storage of liquid reactives, reducing the space used, and removing the inflammable, corrosive or toxic vapours by adsorption by means of a specific activated carbon filter, and recirculating the purified air into the laboratory. In compliance with the main requirements and recommendations of the strictest standards: BS7258, CSAZ 316.5, AFNOR NF X 15-211(Class II), EN-1822, EN-141, UNE EN ISO 9001-200.

Most popular related searches

chemical storage cabinet

chemical storage

impregnated activated carbon

storage cabinet

activated carbon

activated carbon filter

Applications

Storage of common or toxic chemicals, with some restrictions. Filters available:

Type A: adsorption of vapours and organic solvents (ketones, ethers, alcohols, cyclics…). Activated carbon without impregnation.
Type BE: inorganic gases like Cl2, HCl, HNO3,… and volatile sulphur compounds (H2S, H2SO4, SO3,…). Activated carbon with impregnations of metallic compounds and neutralizing salts.
Type F: specific for formaldehyde and derivatives. Impregnated with Cu.
Type K: specific for NH3 vapours and amines. Activated carbon impregnated with metallic complexes.

Technical Innovations

More information on the new LCD

Aspiration speed
Type of filter installed
Open door alarm
Date, time and countdown timer
Date of next validation/revision
Counter of working hours of the filter and the fume hood

Extra features

Initial cycle flow adequacy and final purge cycle
Airflow control by microprocessor
125V-60Hz

New warnings scheduled

Filter expiry date
Next revision/validation of the fume hood
Low airflow

Serial equipment

Safety door lock
Illumination
Liquid retention tray (2 litre capacity)
Absorbent pads
Alarm in case of fan failure
20l. of storage capacity per shelf (4)
Sampling port to detect the filtration system
