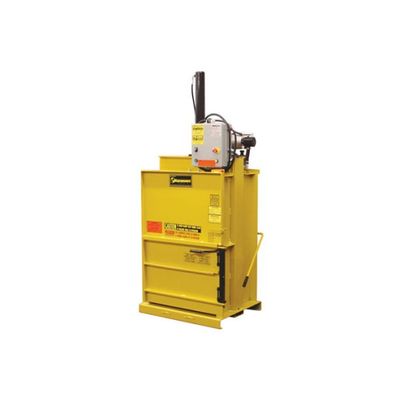

Harmony - Model M30STD -Vertical Baler

• Bale Size: 24" x 30" x ≤ 25"
• Bale Wt. (OCC): ≤ 145 lbs.
• Overall Height: 88"
• Economical Small Baler

Space Saving Design Coupled with Superior Hydraulics

The M30STD is the back of the house machine that makes the best use of available space of any baler in its class. The two stage pump is energy efficient. Potentially damaging hydraulic shock and drift-back have been eliminated through the use of a unique hydraulic valve and special internal seals. Access to the motor, pump, and all controls allows for easy service. These are just a few of the many reasons why the M30STD is the small recycling machine that is at the head of its class.

Specified For Downtown NYC Residential Buildings

The Lower Manhattan Downtown Alliance provides suggestions on recycling, waste diversion, affordable means to bale and compact waste that collects on sidewalks, as well as other policy recommendations from the DSNY.

Page 10 of this valuable resource specifies Harmony’s M30STD Vertical Baler as a recommended baler for residential buildings.  It focuses on the positive impact and reduction of recyclable waste that balers like this can create, especially in compact urban areas where space is a premium.

Not sure which size is best for you?  Visit our Recycling Balers page to see all of our high quality recycling products.

Or check out these useful resources:

• Vertical Balers By Harmony
• Cardboard Balers By Harmony

• Fits into tight spaces and low ceilings other balers cannot
• Reduces recycling disposal costs
• Saves labor and time, making your operation more profitable
• Improves your business appearance and increases workplace safety

• Bale Size: 30″ x 24″ x up to 24″ (762 mm x 610 mm x up to 610 mm)
• Bale Weight (OCC): up to 145 lbs. (66 kg)
• Ram Pressure: 14,138 lbs. max (6,413 kg)
• Cycle Time: 23 seconds
• Cylinders: 3″ (76 mm) bore, 2″ (51 mm) rod, 32.25″(718 mm) stroke
• Motor: 2 HP, 1,725 RPM, TEFC
• Pump: Two-stage
• Electrical Power: 115/230 Volt, 1 Phase, 60Hz
• Bale Eject: Manual Lever System
• Bale Tying: Strapping or polyethylene twine

• Loading Door Opening: 18″x 30″ (457 mm x 762 mm)
• Unloading Door Height: 28″ (711 mm)
• Overall Height: 88″ (2,235 mm)
• Overall Depth: 34″ (864mm)
• Overall Width: 40″ (1,016)
• Depth with Door Open: 66″ (1,676 mm)
• Width with Door Open: 46″ (1,168 mm)
• Shipping Height: 69″ (1,753 mm)
• Shipping Weight: 1045lbs. (474 kg)
• Installation and Operating Area: 21.1 Square Feet (2 square meters)

• 3 Phase 208/460 V Power Unit
• Locking Casters

Textiles, Convenience Stores, Office Developments, Motels/Hotels, Hospitals/Nursing Homes, Restaurants, Drug Stores, Other Industrial/Commercial Applications.
