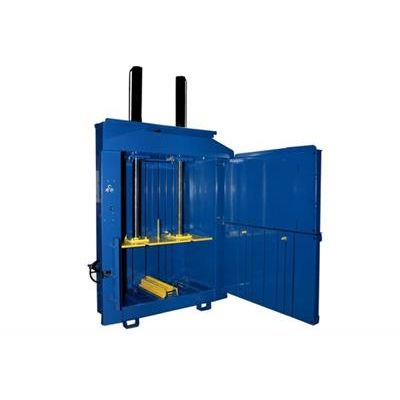

MACFAB - Model 550 -Vertical Balers
FromMacfab Systems
Produces a mill size bale. Ideal for medium to large amounts of recyclable material. Retainer claws to prevent spring back of material in the bale chamber. Fully automated bale ejector, simplifies the removal of the bale. Five wire tying for a more secure bale.
Most popular related searches
vertical baler
baler
recycling system
materials recycling
baling wires
baling wire
recycling baler
vertical mill
baler equipment
- Available with either 220-240 volts power supply.
- Sliding top door for easy loading for material
- PLC panel with automatic compaction cycles and bale full light.
- Low noise pump 64 db
BALER DIMENSIONS
- Height: 3.217 m
- Width: 2.115m
- Depth: 1.200 m
- Weight: 1650 kg
- Transportation Ht: 2.5 m
- Power Supply: 380 - 400 Volt 3 phase
- Motor: 11 kW 32 Amp
- Pressing Force: up to 50 Ton
- Noise Level: 74 decibels
BALE DIMENSIONS
- Height: 1.200 m
- Width: 1.500 m
- Depth: 0.769 m
- Weight: 550 kg (depending on material used)
- Cycle Times: 40 seconds
LOADING APERTURE SIZES
- Height: 0.880m
- Depth: 0.769 m
- Width: 1.5 m
