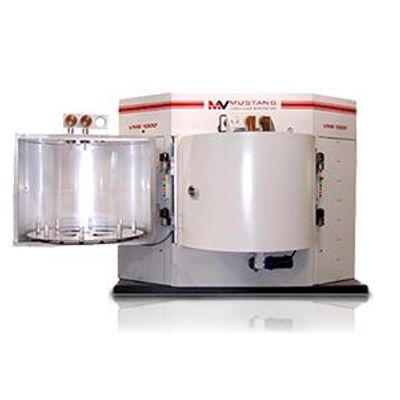

Mustang - Model VMS 1000 -Vertical Batch Coating Vacuum Deposition System
Vertical batch coating system optimized for thermal resistance evaporation. Designed for coating low temperature plastics in a batch manufacturing environment Ideal for batch aluminum deposition for lighting reflectors, cosmetics and paint metal paint decorative finishes. Rotating multi-planetary fixture designs provide uniform coating for large batch size complex 3D substrates.
Most popular related searches
batch coating system
vertical coating system
vacuum deposition system
coating equipment
vacuum coating system
evaporator system
metal finishing
plastic coating
- Vertical Batch Thermal Evaporation Metalizing System
- Optimized Coating Area 1,000mm Tall x
- Dual door with Multiple Planetary tooling configuration
System Type
- Vertical Batch
- Two door with rotating tooling fixtures
Optimized Coating Area
- 6, 8 or 10 Planetaries
- 1000 mm Height
- Six (6) 540mm (21.25”) Planetaries or,
- Eight (8) 430mm (16.92”) Planetaries
Technical Summary
High power thermal resistive evaporation combined with in chamber heated monomer PECVD provides high brightness aluminum coatings for a wide range of plastics and metal substrates.
Coating Method Options
- Resistive Thermal Evaporation
- Continuous feed evaporation sources
- PECVD - MF AC Plasma
Typical System Dimensions
- Width – 3.5M (11’6”)
- Depth - 3.39M (11’2”)
- Height – 2.8M (9’2”)
Features
- Dual Manual Door with Quick Change Fixturing
- Networking Compatible with On-Board Diagnostics
- Desiccant Venting Standard
Typical Applications
- 3D Plastics / Metal and Ceramics
- RF Shielding
- Decorative
