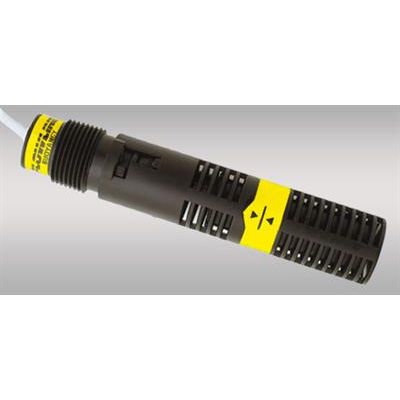

Flowline Switch-Tek™ - Model LV10 -Vertical Buoyancy Liquid Level Switch
FromFlowline Inc.
The general purpose buoyancy liquid level switch provides high or low liquid level detection of relatively clean water and chemical solutions with a 15VA reed switch output. Media examples include potable water and boric acid. The baffle body eliminates level switch chatter caused by turbulence. The submersible PP or PVDF level switch sensor is mounted vertically inside the tank, and connected to a PLC or relay controller.
Most popular related searches
buoyancy liquid level switch
liquid level switch
level switch
corrosive liquid
drinking water
level sensor
float switch
- Baffle body and stabilized float dampen out switch chatter
- Submersible PP or PVDF sensor and cable for corrosive liquids
- 15VA dry contact selectable NO or NC state via wiring selection
- Compatible with Smart Trak and Switch-Pak installation fittings
- Orientation: ± 20º vertical
- Accuracy: ± 2mm in water
- Repeatibility: ± 1mm in water
- Specific gravity: 0.8 minimum
- Contact type: (1) SPDT reed
- Contact rating: 15 VA, 0.25A maximum
- Contact output: Selectable NO / NC
- Process temp.: F: -40° to 176°, C: -40° to 80°
- Pressure:: 25 psi (2 bar) @ 25º C, derated @ 1.667 psi (0.113 bar) per ºC above 25º C
- Sensor rating: NEMA 6 (IP68)
- Sensor material: -13X1: PP, -53X1: PVDF
- Cable jack. mat.: -13X1: PP, -53X1: FEP
- Cable type: 3-conductor, shielded
- Cable length: 10’ (3m)
- Process mount: 3/4” NPT (3/4” Rp)
- Classification: General purpose
- Compliance: CE
