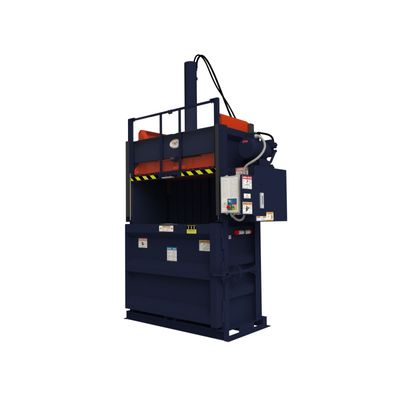

Cram-A-Lot - Model VB -Vertical Cardboard Baler
In 1978 we manufactured our very first product, a vertical cardboard baler. It was called the Cram-A-Lot DB-60, and since that time we have sold tens of thousands of vertical balers. In 2004, we revolutionized the industry with the Cram-A-Lot VB-60 – the safest, most reliable, and most user friendly vertical baler on the market today.
Gas Spring Assisted Loading Door - Chain and sprocket problems have been replaced with a patent pending system that utilizes gas springs to smoothly open the loading door after each compaction stroke and significantly reduce the opportunity for hand injury.
Safety Interlock - The entire operational circuit of the baler is controlled by a patent pending design that utilizes an Electro-Magnet to hold the loading door securely in place until the baler has completed the compaction cycle and is in position to re-load.
Patented Bale Eject System - Unique design eliminates the use of chains and protects against bale eject system failure.
Hydraulic Cylinder - Made in the USA to our exact specification.
Control Panel - Innovative design and layout of the control panel has allowed switches, operators and interlocks to be reduced by 50%, reducing maintenance costs.
Side Mounted Power Unit – The power unit has been redesigned for simplicity and reliability, and also relocated to the side of the baler chassis for safer and easier maintenance. Brand name components are used to ensure long term reliability. A direct drive vane pump is mounted directly to the motor flange, thereby eliminating the motor coupler and providing quieter and more reliable operation. The directional valve is mounted directly to the pump body, eliminating up to 50% of the hoses and potential leak points that exist on comparable models. All Cram-A-Lot power units are manufactured and assembled “in house” using brand name components.
- Made in the USA
- Complete Baler UL Listed
- ANSI Z245.5 Compliant
- Key Operated Controls
- Quiet Operating Vane Pump
- Gas Spring Assisted Loading Door
- Electro-Magnet Safety Lock
- Side Mounted Power Unit
- Patented Bale Eject System
- UHMW Ram Guides
VB BALER STEEL OPTIONS
- Left or Right Hand Chamber Door
- Retractable Retainer Teeth
- Front Feed Wire Guides
- Canopy for Outdoor Use
VB BALER ELECTRICAL & HYDRAULIC OPTIONS
- Electronic Key Pad Start
- Full Bale Indicator
- Regen Hydraulic Circuit
- Oil Heater
- Biodegradable Oil
- Hydraulic Oil & ATF Blend – 50%
- Single Phase Voltage Option (5hp, 230V, w/ 2 Stage Pump)
- Three Phase Voltage Options (208V, 230V, 460V, 575V)
