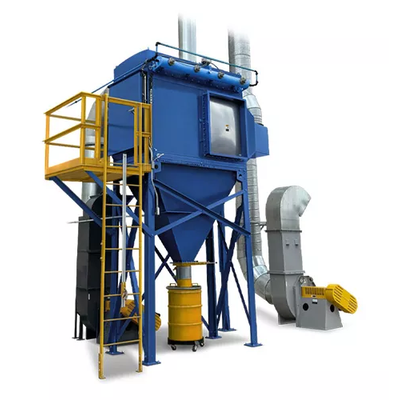

Sly - Vertical Cartridge Filter Collector
Gravity works in your favor with the Vertical Cartridge filters, allowing dust and debris to fall off rather than gathering on the cartridge’s filter media. VCFs are ideal for many applications where the dust is dry and free-flowing.
Dirty air is pulled in from ductwork, and particulates are captured. Clean air is pulled through the filter media and into the clean air plenum, then exits the collector and goes to the return air duct.
Dirty air is pulled in from ductwork, and the filters capture particulates. The clean air is pulled through the filter media and into the clean air plenum. The air then exits the collector and goes to the return air duct. Compressed air pulses into the filter, cleaning it from the inside out. The dust cake built on the filter is then knocked down into the grating below or a hopper.
- High-powered pulse cleaning system blows dust off filters to extend filter life.
- No outside bolts help inhibit rust
- Even filter loading eliminates the need to rotate dirty filters.
- Quick open, tool-less doors provide convenient access
- Factory tested and installed cleaning system expedites start-up.
- Lift rail door stop keeps doors from closing if rails are not in the proper upright position.
- Double gasket design ensures a tight filter seal.
- Anti-ramp rails provide the proper filter alignment to prevent overlapping.
- 800 sq.ft. – 48,000 sq.ft. Filter Options
- Dust Level Sensor
- Indirect and Direct Release Systems
- Configurable Hopper Slope/Discharge
- Platform, Straight, or Perimeter Access
