KES Separation - Model KSCD-930 and KSCD-930VFD -Vertical Cutting Dryer for Drilling Waste Management
The Vertical Cutting Dryer is an essential component in the process of drilling waste management. It operates as part of a line-up of equipment designed to optimize the separation of drilling cuttings from drilling fluids. By processing the coarser particles that remain after the initial shaker separation, the vertical dryer extracts and conserves oil-based mud. This process is critical in reducing oil content on cuttings (OOC) to levels as low as 5%, ensuring environmental compliance and operational efficiency. The structure is designed with technical specificity, including options for fixed speed or variable frequency drive (VFD) controls to regulate operations. The dryer uses a sophisticated array of components such as high G forces up to 420G, stainless steel 316L baskets for corrosion resistance, and precision dynamic balancing to facilitate maintenance and replacement. Equipped with an individual oil lubrication system, this dryer can only commence operation once the oil pump is activated, demonstrating a robust safety mechanism.
The main function of vertical Cuttings dryer is to recover the useful oil based mud, reduce the oil content on cuttings (OOC) and reduce the total volume of cuttings which will be finally treated by Thermal Desorption Unit.
On-line Drilling Cuttings is generated from the whole drilling process. The cuttings will be carried out by drilling fluids, and then separated by solids control / waste management systems. The first stage separating equipment is shale shaker. After shaker separation, the fine cuttings will drop down to under tank with drilling fluids, and the coarse cuttings will be separated and treated by vertical cutting dryer.
The main function of vertical dryer is to recover the useful oil based mud, reduce the oil content on cuttings (OOC) and reduce the total volume of cuttings which will be finally treated by Thermal Desorption Unit. The recovered oil based mud will be returned to active mud system. Some conditions, the operator will adopt High G dryer or high G shaker to replace the Vertical dryer to achieve same functions. Even, the performance of High G dryer is not as good as Vertical Cutting Dryer, the oil on cuttings will be around 10% after high G dryer, but all choices is depends on the owner’s requirements.

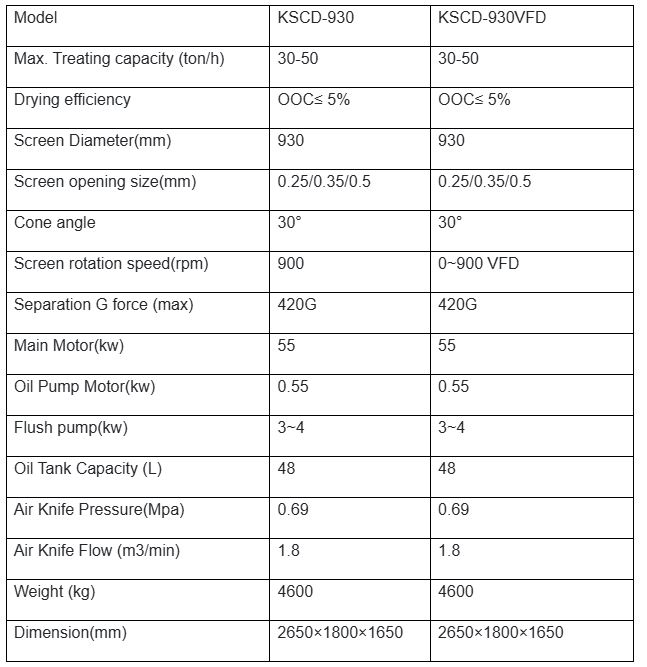

- 420G High G force under 900 rpm regular operation speed
- 750G High G force under 1200 rpm higher operation speed for option
- Vertical Cutting Dryer can be started with fixed speed control or VFD control
- Main electrical components sourced from international brand: SIEMENS, Schneider or ABB
- The Ex-proof standard normally comply with China Standard EXDIIBT4, IEC/ATEX for option
- The main bearings are Spherical Roller Bearings, source from FAG Brand
- The Flights on the rotor is hard facing to HRC 65, with longer lifetime
- The Flights and the rotor assembly are individually balanced for easy replacement
- The screen basket material is Stainless Steel 316L, better performance in ani-corrosion
- The screen basket is processed in high precision and dynamic balance to ensure better balance and easy replacement
- Equipped with high pressure air cutter to clean the high viscosity mud sticking on the screen basket
- Equipped with water jetting system to work together with air cutter, to avoid screen block
- Individual oil lubrication system with low pressure automatic alarm.
- Dryer motor and oil system motor is interlocked, the dryer can be started only after starting the oil pump
