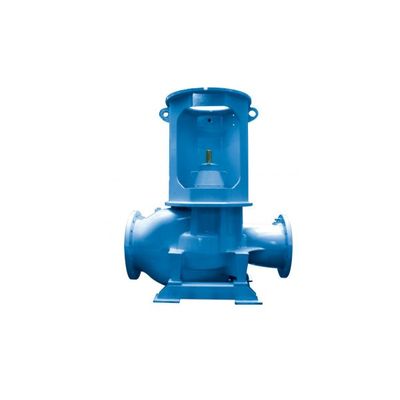

Garbarino - Model MU-LDS -Vertical In-line Double Suction Centrifugal Pumps
Single stage vertical centrifugal pumps in spacer coupling design. Casing with in-line flanges and with high efficiency double inlet impeller, low NPSH required and balanced axial thrust, flow rate up to 3.500 m3/h.
Most popular related searches
centrifugal pumping
centrifugal pump
cooling water supply
vertical centrifugal pump
vertical inline centrifugal pump
centrifuge
industrial water
water industry
vertical centrifuge
cooling water
- Fresh water, sea water, industrial water, condensate, brine, oils and other clean liquids.
- Shipbuilding industry: ballast, hull and general services, cooling, circulation. Land based industry: circulation, cooling, water supply and general services.
- MU-LDS pumps are available in six sizes. Wetted material can be in cast iron, nickel-aluminium bronze, stainless steel or special alloy. Automatic priming system execution by means of ejector or vacuum pump.
- Special executions according to Naval rules, shock-proof, noise-proof, vibration-proof, non magnetic.
- MU-LDS pumps are designed in order to offer best possible performance and lowest possible maintenance. BACK PULL-OUT design allows maintenance on internal parts without removing motor and pipes.
- Easy replacement of bearings and seal without pump dismantling.
- Casing: casing is of the double volute type to reduce radial load on impeller and ensure maximum working life of bearings and mechanical seal.
- Mechanical seal: high quality mechanical seal (silicon carbide/silicon carbide/viton) for a wide range of applications. Mechanical seal is cartridge design for easy installation and removing. Soft packing is also available.
- Bearing bracket and motor stool: external grease bearings in special bracket specially designed for ease of maintenance. Bracket design allows the replacement of mechanical seal and bearings without dismantling the pump completely.
- The motor stool in welded steel to reduce vibrations has got a wide opening to facilitate maintenance.
