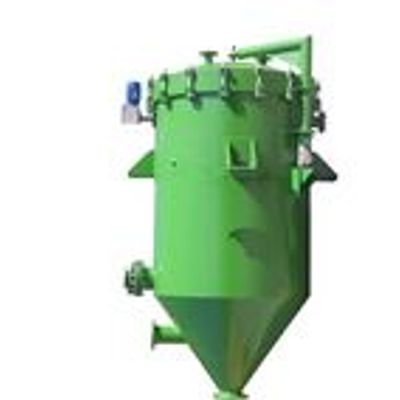

Tecniplant - Vertical Pressure Leaf Filters
The vertical pressure leaf filters represent an efficient system for Solid-Liquid separation with low filtration surfaces. Easy to operate and maintain, they consist in rectangular filtering leaves with different dimensions, which are vertically mounted on an outlet manifold in a pressure tank. The filtering elements filter through both sides. In order to remove the cake, the discharge and the cleaning of the leaves can be supplied as follows:
Dry type. The cake is removed by means of a high frequency vibrating system and is drained through the outlet flanged connection located on the bottom.
Wet type. The cake is removed by means of spray jets mounted on a horizontal oscillating device with variable speed. The device cleans the whole filtering surface with strong blade jets.
- The filter leaves are held by a shaft, which acts also as filtered liquid collector.
- The standard design range covers a filtering surface of up to 250 m2 (PED, ASME).
- The top door is normally equipped with a hydraulic jack for easy opening.
- High operational flexibility
- Easy maintenance and low related costs
- Automatic washing system
- Continuously operation with operating and stand-by unit philosophy
- Steam steam available
- Construction in a wide range of sizes
- Wide range of application and industry
- Vegetable Oil
- Amine Solutions
- NaCl and KCl Brine
- Amine MEA (Monoethanolamine)
- Hypochlorite
- Catalyst Recovery
- Liquid Sulphur
- Biodiesel
- Solvents
- Zinc and Manganese Sulphate
- DEA (Diethanolamine)
- Sea Water
- Solvents
