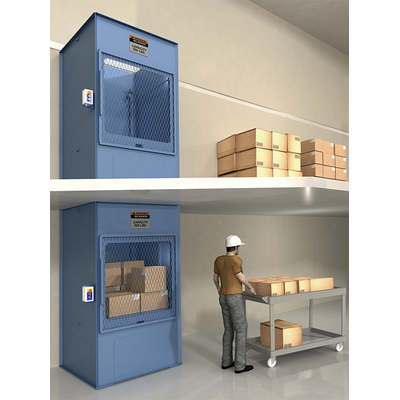

Pflow - Model B Series -Vertical Reciprocating Conveyor

Similar to a commercial dumbwaiter, and designed for quick and easy installation, PFlow’s B Series Box Lift’s sections are shipped pre-wired with quick-connect wiring. Unlike a commercial dumbwaiter, the B Series Box Lift`s carriage, or platform, is lifted/lowered by dual roller chains connected to a mechanical motor/gear reducer. The motor/gear reducer is located in an easy-to-access location at the base of the unit so that maintenance can be performed quickly and easily, reducing downtime and saving time and money.

B Series Box Lift Overview

• Lifts loads up to 500 lbs in two-level applications
• Carriage size is 3’ x 3′
• Vertical rise to 15’9″
• Unit is positioned to load/unload at an ergonomic
  30″ above the floor
• Standard travel speed is 30 feet per minute
• Unlimited, continuous cycles
• Indoor use only
• Lifetime structural warranty
• Conforms to ASME B20.1 Safety Standards

Advanced safety features are built into each B Series Box Lift

• Spring-loaded dual safety pins prevent uncontrolled carriage descent in the event of chain failure
• Electro-mechanical door interlocks prevent opening carriage gate when lift is in motion
• Full-height safety enclosure keeps loads secure
• Motor overload protection prevents excessive current draw

For lighter package loads, see our DB Series package handling VRC with a lifting capacity of up to 100 lbs.

• Loading and unloading from one of three sides at each level
• Mechanical motor/gear reducer located at the base of the unit for ease of maintenance
• Unit ships in modular sections pre-wired with quick-connect wiring
• Interlocked swing gates are provided at each level to ensure safe lift operation
• Modular swing gates can be configured to hinge right and lock left or vice versa
• Durable, high-quality construction ensures reliable long-term performance
• Advanced safety features protect workers and materials
