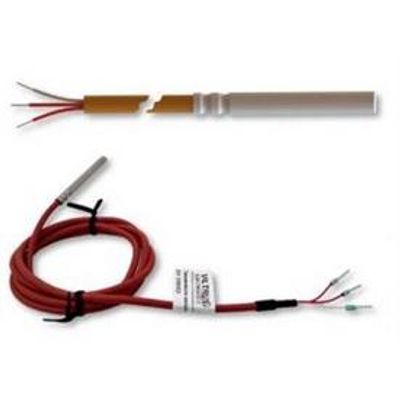

Viltrus - Model TM-1 RTD -Temperature Sensor with Connection Cable
TM-1 RTD temperature sensor with connecting cable has excellent price-performance ratio. The application areas are: air conditioning, refrigeration industry, construction of HVAC systems, laboratory technologies or farming and agriculture.
Application possibilities
Push-in RTD or thermocouple temperature probes are the preferred choice for measuring temperature in liquids and gasses from -50 to +400°C.
- Water/Heat monitoring
- Industrial monitoring
- Agro monitoring
- Heat substation monitoring
- Commercial monitoring
Thermometers adjustment to client`s needs
If client needs custom made application or special dimensions, our R&D department is ready to help. We can adjust our temperature sensors or whole measurement system, include special temperature sensors, protocols or interfaces to meet client application`s needs. Also we are ready to adjust our solution for existing system with various sensors. If you are not sure if our device can satisfy your needs, feel free to contact us anytime.
TM-1 application example
TM-1 application for industry and agriculture use is shown below.
- Sensor RTD (resistance) or thermocouple
- Class A or B (for RTD) and class 1 or 2 for thermocouple
- Protection tube AISI304 (1.4301) or 316L (1.4404) stainless steel
- Cable PVC, silicone, PTFE or GLASS fiber metal braiding
- Circuit 2-wire, 3-wire or 4-wire circuit
- Dimensions 20 … 3000 mm
- Weight 30 g
- Protection type IP65 (depend of cable insultion)
- Operating temperature -50 to +400°C (depend of cable insultion)
- Warranty period 2 years
