Vision - Model G2 Classic 6 -Dissolution Tester

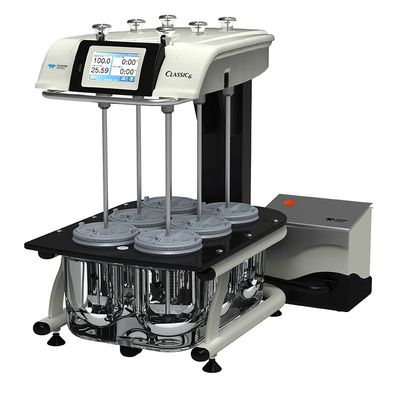

The Vision G2 Classic 6 dissolution tester is the compact, rugged workhorse sibling to the Vision G2 Elite 8. Named in honor of the world’s first dissolution tester, a six-position test station introduced by Hanson Research in 1969, the G2 Classic 6 is precision engineered to ease the rigors of manual dissolution testing. The G2 Classic 6 meets and exceeds worldwide standards including compliance with USP, FDA, ASTM, EP, JP, CE, CSA, RoHS, and 21 CFR Part 11.
- Award-winning design (2 across x 3 deep) provides easy access to all vessels
- Compact footprint saves valuable bench space
- 6-position Easi-Lock™ vessel plate ensures proper vessel centering
- Up to 100 protocols stored (create, manage, call routines)
- Superior coating protects vessel plate from corrosion
- Fixed drive head guarantees repeatable, drive head positioning
- No tools or adjustments needed to switch among USP App. 1, 2, 5, 6, and 150 mL and 250 mL small volumes
- “Quick Test” feature begins tests immediately with the push of a button
- Adaptable for automated sampling
Vision G2 dissolution testers are designed with over 60 years of dissolution expertise and know-how. The modular design is plug-and-play ready making these systems upgradeable or automated without the need for separate firmware. They come standard with a full color touchscreen and intuitive menus, giving users the confidence of precision control for speeds 25-250 rpm and temperature 25-55°C. Powerful programming, backed by a robust security system for 50 users, features the ability to create up to 100 unique protocols that can be conveniently transferred by flash drive to other Vision G2 testers, resulting in higher throughput and sample analysis.
- Customizable reports that allow users to define the report style
- Hand-held digital temperature probe for vessels and waterbath
- Quick, no-tools-needed access to internal components for time-saving maintenance
- Low variation in spindle speed: 0.6 rpm max (typical)
- Independent Vision heater circulator with low vibration and space-saving location
- Molded waterbath with fast heat-up & low level drain
- Rugged, chip-proof vessels
- Free technical support for the life of the instrument
- Numerous user-defined configurations, including user defined speed and temperature tolerances, alarms, and much more!
Vision dissolution test instruments are designed for seamless integration, intuitive programming and operation, flexibility to handle a wide range of applications, with maximum throughput and productivity. Design your lab system to handle everything from 1-bath routines to extensive multi-bath testing. Collect samples for off-line analysis in UV-Vis, HPLC, or UPLC detectors. Connect to a spectrophotometer multi-cell transport for on-line UV analysis.
