SIGHT-PIPE - Visual Inspection Borescopes
SIGHT-PIPE offers a range of borescopes crafted from high-grade optical materials designed for inspecting intricate features within machined components. The Regular Series SIGHT-PIPES are specifically engineered to provide visual access to confined sections of bores or cavities, crucial for assessing detailed characteristics. They operate by projecting the image of the bore's internal sidewall, delivering a perspective akin to a sectional view of the piece. Available in standard diameters ranging from 0.125 to 1.000 inches, with customized sizes available, they are adaptable to various inspection needs. These devices can function independently or with accessory attachments such as stop collars for depth positioning and light input adapters for optimal illumination. The 1310 Portable Illuminator further enhances inspection with its battery-operated design. SIGHT-PIPES are a flexible solution for industries requiring precise examination of internal component features, with repair and customization options ensuring enduring functionality.Most popular related searches
visual inspection
visual inspection borescope
borescope inspection
borescope
boring machine
piping design
optical inspection

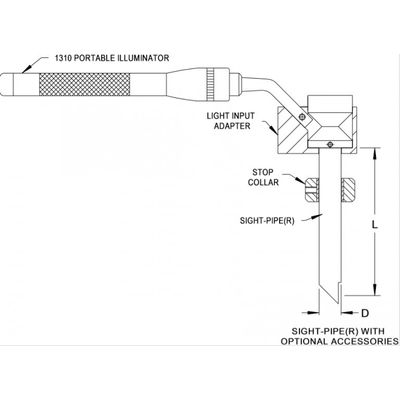

Regular series SIGHT-PIPES® are used to visually inspect a specific portion of a machined bore or cavity for a particular characteristic. The SIGHT-PIPE® projects an image, of the piece part sidewall, to the top of the enlarged head of the SIGHT-PIPE® at a right angle (90°). The image seen would be similar to that produced by sectioning (cutting) the piece part and looking directly at the sidewall. Regular series SIGHT-PIPES® are available in standard diameters from 0.125″ to 1.000″ with special sizes available upon request. SIGHT-PIPES® can be used alone or with the accessories described below.
- Stop Collar: Used to set the depth that the SIGHT-PIPE® can be inserted into the piece part. Useful when inspecting a characteristic at a specific depth.
- Light Input Adapter: Fits on the head of the SIGHT-PIPE® and properly positions a light source to direct light down the SIGHT-PIPE® illuminating the area being viewed.
- 1310 Portable Illuminator: Portable battery operated light source. (2 AA batteries)
