Despatch - VOC Thermal Oxidizer
Virtually maintenance-free elimination of Volatile Organic Compounds in exhaust gasses. Despatch’s VOC Thermal Oxidizer was designed to eliminate 99% of Volatile Organic Compounds (VOCs) from gasses exhausted during the drying step of solar cell manufacturing.
The solar cell manufacturing process creates unwanted environmental pollutants which are byproducts of the drying process, and contain the non metallic ingredients found in the paste material such as ethanol, Texanol and terpineol. These pollutants can condense inside facility ductwork and create hazardous conditions. Destroying the VOCs using the Oxidizer eliminates the need to collect and dispose of this waste in a separate process. The exhaust exiting from the VOC Oxidizer contains only CO2 and water vapor.
In industries that emit VOCs and have established pollution control technology criteria, Thermal Oxidizers satisfy Best Available Control Technology (BACT), Maximum Available Control Technology (MACT) and Lowest Achievable Emission Rate (LAER).
Features At A Glance
- Designed for high-speed, high-capacity solar cell manufacturing lines
- Eliminates VOCs as close to the point of origin as possible
- Electric (no need for gas or open flame, no NOx generation)
- Runs off of furnace power (with soft-start software)
- Best in class (99% or better) destruction of VOCs:
- Odors – 100% elimination of odor
- Particulates – 99%+ destruction of organic particulate matter
- VOC’s – 99%+ destruction ofVolatile Organic Compounds
- HAP’s – 99%+ destruction of Hazardous Air Pollutants
- Exhaust contains only CO2 and water vapor
- Meets legal requirements regarding the capture or destruction of organic materials
- Eliminates need for handling and disposal of waste product collected in VOC condensers
- Fits on top of CF/CDF dryer - no additional footprint required

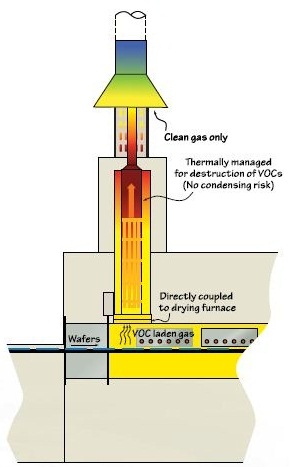

Despatch’s Thermal Oxidizer attaches directly to the furnace, removing any chance of condensation. VOCs are incinerated, releasing only small amounts of CO2 and water.

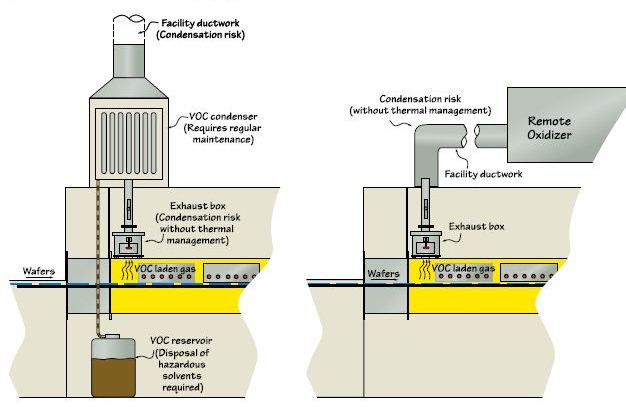

Other VOC abatement options are ineffective and require extensive maintenance. Condensers require containment and removal of hazardous solvents and regular cleaning. With remote facility abatement systems, solvents condense in the ductwork requiring extensive cleaning and creating a fire hazard.
The operation of the VOC Thermal Oxidizer is based on the principle of combustion which is the most commonly used method to control emissions of organic compounds and is used in a variety of industries. Combustion systems are simple and have very high destruction efficiency.

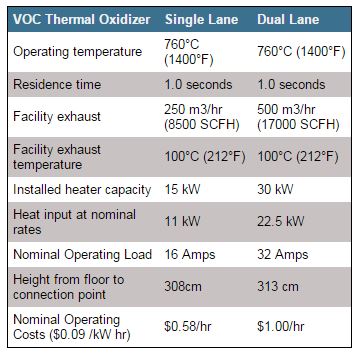

The VOC Thermal oxidizer maintains a temperature of 760°C (1400°F) to ensure destruction of all VOCs. The oxidation process releases heat and thereby contributes to maintaining the temperature of the oxidizer.
