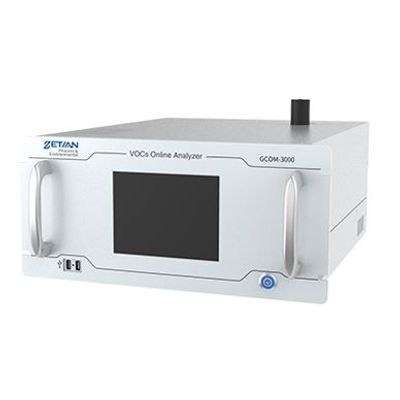

Zetian - Model GCOM-3000 -VOCs Online Monitoring System
GCOM-3000 VOCs Online Monitoring System is composed by VOCs monitoring subsystem, exhaust parameter monitoring subsystem, gas analysis module and system control & data acquisition subsystem. It can monitor organic pollutants in waste gas including methane, total hydrocarbon and non-methane hydrocarbon, low-carbon aldehyde ketone, benzene series (benzene, methylbenzene, xylene, ethylbenzene, cumene, etc.) as well as part of haloalkane and humidity, temperature, pressure, velocity of exhaust. Sample gas passes probe for dust removal, tracing pipe for heat tracing, and then enters high-temperature chromatographic analysis module (GC-FID) for analysis and measurement. For monitoring occasion of organic pollutants with high boiling point, it can effectively prevent sample gas from absorbing and losing in collection and transmission process, thus ensuring stability and excellent performance of sample in process of sampling, analysis, data uploading and maintenance.
- Equipped with independent purge device of automatic control in sampling gas path and analysis gas path, overcoming influence of sample gas residue and hysteresis on analysis
- Full-course heat tracing in sampling and analysis process, avoiding sample of high boiling point condensing and losing in gas path
- Compact structure, convenient for use and maintenance, high reliability
Applied in VOCs monitoring of emissions in manufacturing industries including crude oil processing, textile printing & dyeing, chemicals & pharmaceuticals and metal smelting, etc.
- Range: 0~1000ppm (customizable)
- Temperature: 0~300℃ (customizable)
- Velocity: 0~40m/s (customizable)
- Pressure: -10kPa~10kPa (customizable)
- Dimension: 800mmx800mmx2000mm
- Tracing temperature: 120℃~180℃
- IP grade: cabinet IP42
- Communication output: RS485/RS232, configurable
- Ambient temperature: 10℃~45℃
- Ambient humidity: 5%RH~95%RH (non-condensing)
- Compressed air: (0.4~0.8)MPa, clean & oil-free
- Power supply: 220VAC, 4000W
