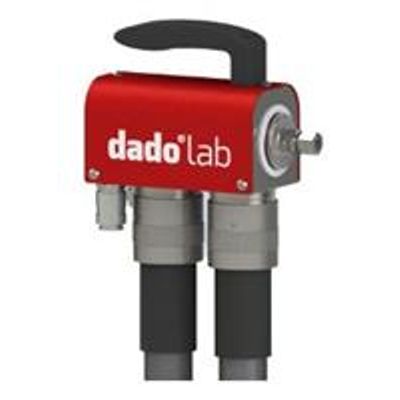

Dado - Model HP1 -VOCs Sampling Probe
The HP1 probe is the evolution of the previous MDG Probe, developed specifically to work in combination with FID instruments in compliance with EN 12619, dilution samplers or automatic measuring systems. The new HP1 is lighter, smaller and even more practical.
The HP1 probe is available in four versions:
- HP1-1W with one outlet for the heated line
- HP1-1WT same as above but thermoregulated
- HP1-2W with two outlets for two heated lines.
- HP1-2WT same as above but thermoregulated
The 2W version allows to connect two analyzers or two sampling lines simultaneously.
The HP1 probe has built-in 220V self-regulating elements with a set-point of 180°C +/- 15° hysteresis while the thermoregulated version allows to connect a heated tube which temperatures can be set on the thermoregulation unit.
A led indicates when the temperature set-point is reached.
The connections are Swagelok realized in steel with a diameter of 6mm or 8 mm on request, specifically selected to resist to long and continuous heat stress.
