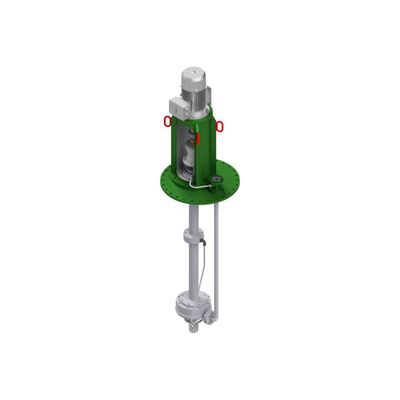

Dickow Pumpen - Model Type NCT -Volute Casing Submersible Pump
The type NCT is a spiral casing submersible pump with shaft seal according to the principle of the two-pipe pump, i. separate shaft guide tube and pressure tube. The hydraulic pump part is arranged in the container or in the pumped medium. The connection is made by a multi-level shaft and pipe string. The bearings of the pump and drive shafts are in plain bearings. The upper drive shaft is fixed by a grease-lubricated double-sided angular contact ball bearing. This allows diving depths of up to 6m.
Most popular related searches
volute casing pump
submersible pump
angular contact ball bearing
explosion protection regulations
explosion protection
bearing lubrication
environmental engineering
mechanical seal pump
gasket sealing
self-priming pump
In addition to the standard version, the following special constructions are available:
- Category 1 version for use in Zone 0 according to the explosion protection directive
- Cantilever version without plain bearing
- heated version
- Oil lubrication
Type NCT
Volute casing submersible pump according to ISO 5199 with shaft seal
- Q max: 1000 m³/h**
- H max: 250 m**
- operating pressure: 16 bar*
- temperature: 200 °C*
- oil & gas, chemistry, petrochemistry, offshore, ship technology
- marine, refueling equipment & aviation, tank storages
- tank farms, renewable energy
- environmental engineering
- Q max: 1000 m³/h**
- H max: 250 m**
- operating pressure: 16 bar*
- temperature: 200 °C*
- max rotational speed: 3500 min−1
- gasket/mechanical seal: mechanical seal
- installation: submersible pump
- self-priming: no
- bearing: rolling bearing, product side plain bearing
- lubrication: grease / oil
- materials: duplex, Ni-based, spheroidal graphite iron / cast steel, austenitic steel
- standards: ISO 5199
- explosion protection: category 2 / zone 1, category 1 / zone 0
* higher pressures and temperatures on request
** depending on size and speed
